12 Fibre MPO/MTP Cassette Panel
KEY FEATURES
- 19 in rack-oriented fibre patching platform
- 1 x 12F cassette / 2 x 12F cassettes / 4 x 12F cassettes / 8 x 12F cassettes
- 1U / 2U fibre patch panel
- MPO/MTP to LC/SC / MPO/MTP to LC interface configuration
- Cable entry and fibre management provisions
- Suitable for unloaded or selected loaded supply
Chat with Sales
0
People watching this product now!
Description

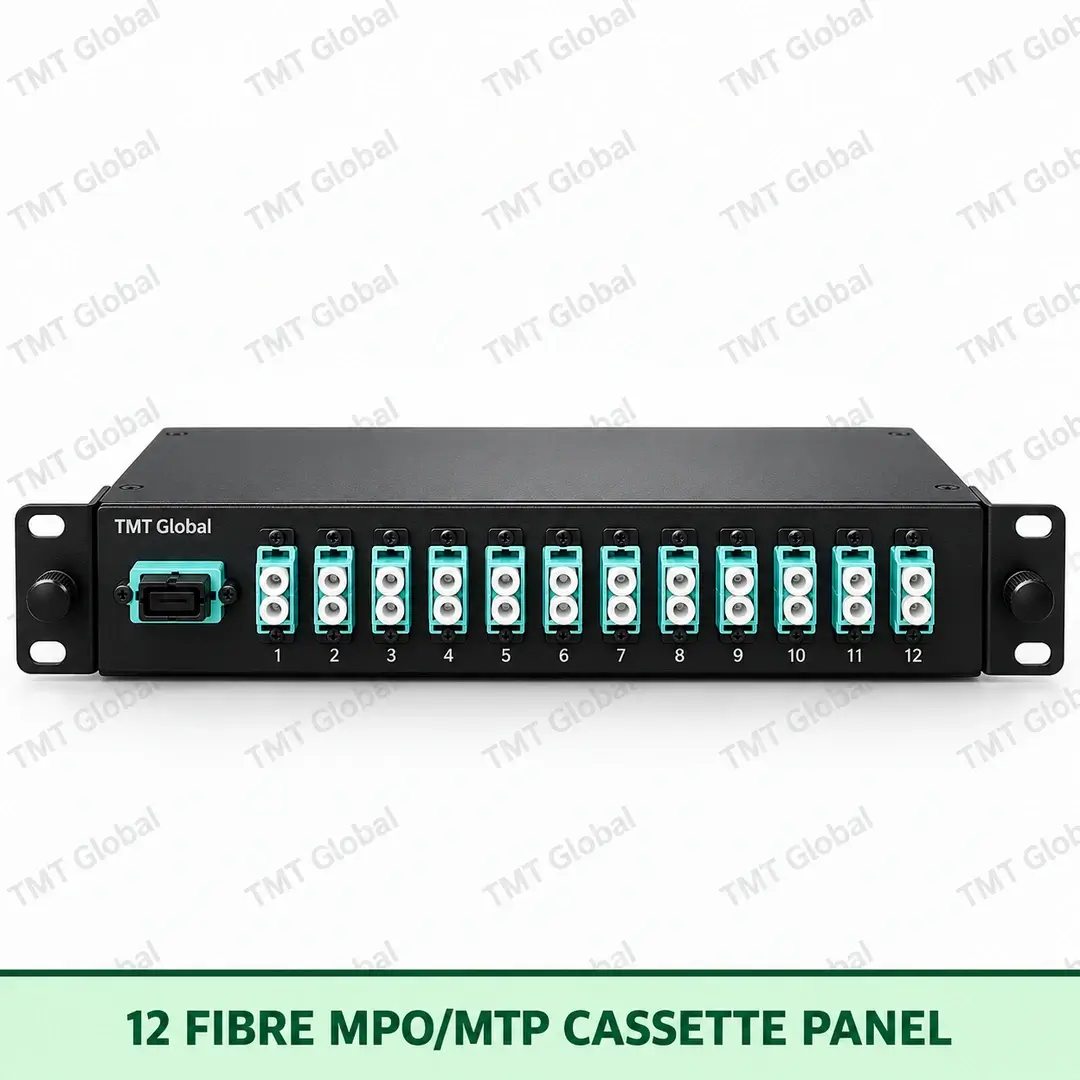

TMT Global 12 Fibre MPO/MTP Cassette Panel Series
The TMT Global 12 Fibre MPO/MTP Cassette Panel is designed for structured fibre termination and patching in enterprise, data-centre, telecom-room and backbone distribution environments. The TMT-FMP12-MP provides a controlled fibre interface for 1 x 12f cassette with MPO/MTP to LC/SC connectivity and 1U rack integration.
KEY FEATURES
- 19 in rack-oriented fibre patching platform
- 1 x 12F cassette / 2 x 12F cassettes / 4 x 12F cassettes / 8 x 12F cassettes
- 1U / 2U fibre patch panel
- MPO/MTP to LC/SC / MPO/MTP to LC interface configuration
- Cable entry and fibre management provisions
- Suitable for unloaded or selected loaded supply
APPLICATIONS
- Fibre backbone termination
- Telecom rooms and ODF areas
- Enterprise LAN fibre distribution
- Data centre rack patching
- FTTx and CCTV fibre networks
OEM / PUBLICATION POSITIONING
Applicable compliance depends on selected adapter, fibre, pigtail and loading configuration.
STANDARDS / TEST BASIS
- Designed for structured fibre cabling systems using recognised rack, optical interface and passive-component practices.
- Applicable compliance depends on selected adapter, fibre, pigtail and loading configuration.
QUALITY / ACCEPTANCE
- Select TMT-FMP12-MP base model
- Confirm SC / LC / MPO-MTP interface and UPC/APC where applicable
- Confirm OS2 / OM3 / OM4 / OM5 loaded components
- Confirm loaded or unloaded supply and accessory kit
TECHNICAL SPECIFICATION
| Parameter | TMT Declared Specification |
| Product family | MPO/MTP Cassette Panels |
| Item code / SKU | TMT-FMP12-MP |
| Capacity / porting | 1 x 12F cassette / 2 x 12F cassettes / 4 x 12F cassettes / 8 x 12F cassettes |
| Rack format | 1U / 2U fibre patch panel |
| Interface | MPO/MTP to LC/SC / MPO/MTP to LC |
| Fibre application | OS2 / OM3 / OM4 |
| Panel construction | Modular cassette construction |
| Material | Powder-coated steel chassis; flame-retardant polymer accessories where applicable |
| Cable management | Rear cable entry, strain relief and bend-radius management |
| Splice management | Integrated splice tray / protection management where applicable |
| Loading type | Unloaded or selected adapter/pigtail loaded configuration |
| Operating environment | Indoor telecom-room / rack environment |
| Colour / finish | Black or grey powder-coated finish according to TMT series |
| Packaging | Individual protective carton with accessory kit |
Additional information
| Brand | TMT Global |
|---|
Download
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team.
Tel: 0138053166
Mob: 0552792350
Email: info@sahilcommunication.sa
Web: www.sahilcommunication.sa
Short Address: EKDA6556
Building No: 6556
Street: prince bader ibn abdul aziz
Secondary No: 2723
Distract: Al Khobar Ash Shamaliyah
Ordering Information
| Item Name | Item Code / SKU | Controlled Description | Series | QR Code |
|---|---|---|---|---|
| 12 Fibre MPO/MTP Cassette Panel | 12 Fibre MPO/MTP Cassette Panel | Fibre Patch Panel |  | |
| 24 Fibre MPO/MTP Cassette Panel | 24 Fibre MPO/MTP Cassette Panel | Fibre Patch Panel | | |
| 48 Fibre MPO/MTP Cassette Panel | 48 Fibre MPO/MTP Cassette Panel | Fibre Patch Panel | | |
| 96 Fibre MPO/MTP Cassette Panel | 96 Fibre MPO/MTP Cassette Panel | Fibre Patch Panel | |
