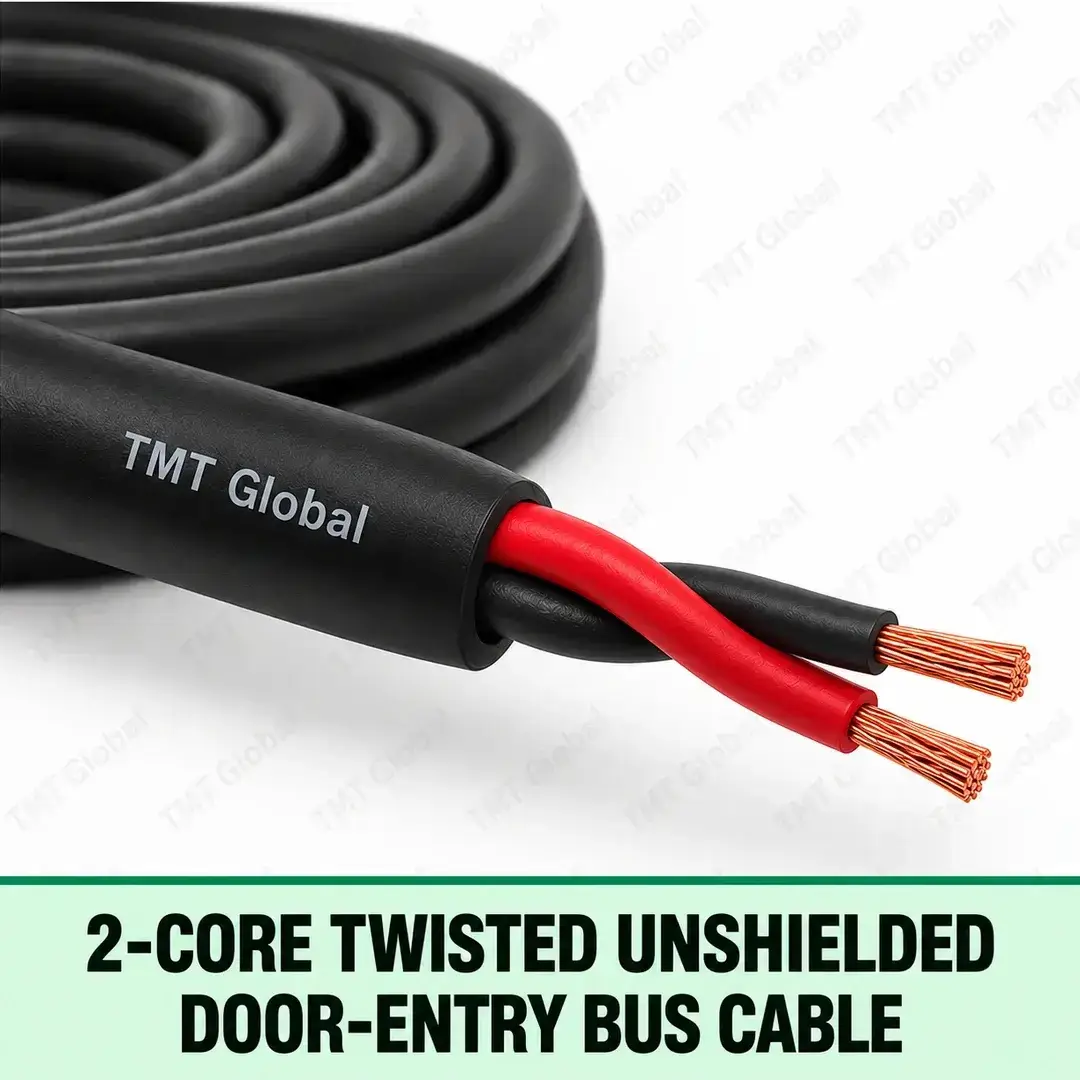

TMT Global 2-Core Twisted Unshielded Door-Entry Bus Cable, black jacket, no foil or braid, exactly one red and one black insulated stranded copper conductor twisted together, two conductor tips only.

2-Wire Twisted Unshielded Door-Entry Bus Cable

KEY FEATURES

  • 2-wire twisted bus
  • Unshielded twisted conductors
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: 02U-IB Category:
Description

TMT 2-Wire Twisted Unshielded Door-Entry Bus Cable Series

TMT Global 2-Wire Twisted Unshielded Door-Entry Bus Cable is a controlled Security & ELV cable family for professional door-entry and intercom installations. Dedicated two-conductor twisted bus cable for digital door-entry and video-intercom systems using two-wire signalling and power architectures. The TMT family is system-neutral; compatibility and distance must be qualified against the target intercom platform. Exact released size/schedule and jacket variations remain searchable Series rows under this product page.

KEY FEATURES

  • 2-wire twisted bus
  • Unshielded twisted conductors
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims

APPLICATIONS

  • 2-wire audio/video door entry
  • Apartment intercom bus
  • Villa / gate intercom links

Technical Specification

SPECIFICATION VALUE
Product family 2-Wire Twisted Unshielded Door-Entry Bus Cable
Series 02U-IB
Primary application Digital door-entry bus
Physical geometry 2-wire twisted bus
Conductor size / schedule 16 AWG / 18 AWG / 20 AWG / 22 AWG
Conductor material Bare copper
Screening Unshielded twisted conductors
Outer-jacket options PVC / LSZH / PE Outdoor
Standard colours White for PVC/LSZH; Black for PE Outdoor
Standard package 305 m
Product format Fixed door-entry / intercom bus cabling
Series configuration Approved conductor schedule and jacket combinations shown below

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
16 AWG 1.31 PVC / LSZH / PE Outdoor
18 AWG 0.823 PVC / LSZH / PE Outdoor
20 AWG 0.518 PVC / LSZH / PE Outdoor
22 AWG 0.326 PVC / LSZH / PE Outdoor
Additional information
AWG16 awg, 18 awg, 20 awg, 22 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
Download

visit: www.tmtglobal.co.uk

tmt global ul
tmt-global-BASEC
tmt global INTERTEK
tmt global IEC
tmt global ISO-9001
sira approved brand tmt global
tmt global ROHSS
tmt-global-ETISALAT
du approved brand tmt global
tmt global CE
tmt global FCC
ICC
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team. Tel: 0138053166 Mob: 0552792350 Email: info@sahilcommunication.sa Web: www.sahilcommunication.sa Short Address: EKDA6556 Building No: 6556 Street: prince bader ibn abdul aziz Secondary No: 2723 Distract: Al Khobar Ash Shamaliyah
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB16 awgPVCWhite305 m QR code for 0216BPURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB16 awgLSZHWhite305 m QR code for 0216BLURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB16 awgPE OutdoorBlack305 m QR code for 0216BKURK-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB18 awgPVCWhite305 m QR code for 0218BPURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB18 awgLSZHWhite305 m QR code for 0218BLURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB18 awgPE OutdoorBlack305 m QR code for 0218BKURK-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB20 awgPVCWhite305 m QR code for 0220BPURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB20 awgLSZHWhite305 m QR code for 0220BLURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB20 awgPE OutdoorBlack305 m QR code for 0220BKURK-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB22 awgPVCWhite305 m QR code for 0222BPURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB22 awgLSZHWhite305 m QR code for 0222BLURW-IB
2-Wire Twisted Unshielded Door-Entry Bus Cable02U-IB22 awgPE OutdoorBlack305 m QR code for 0222BKURK-IB
