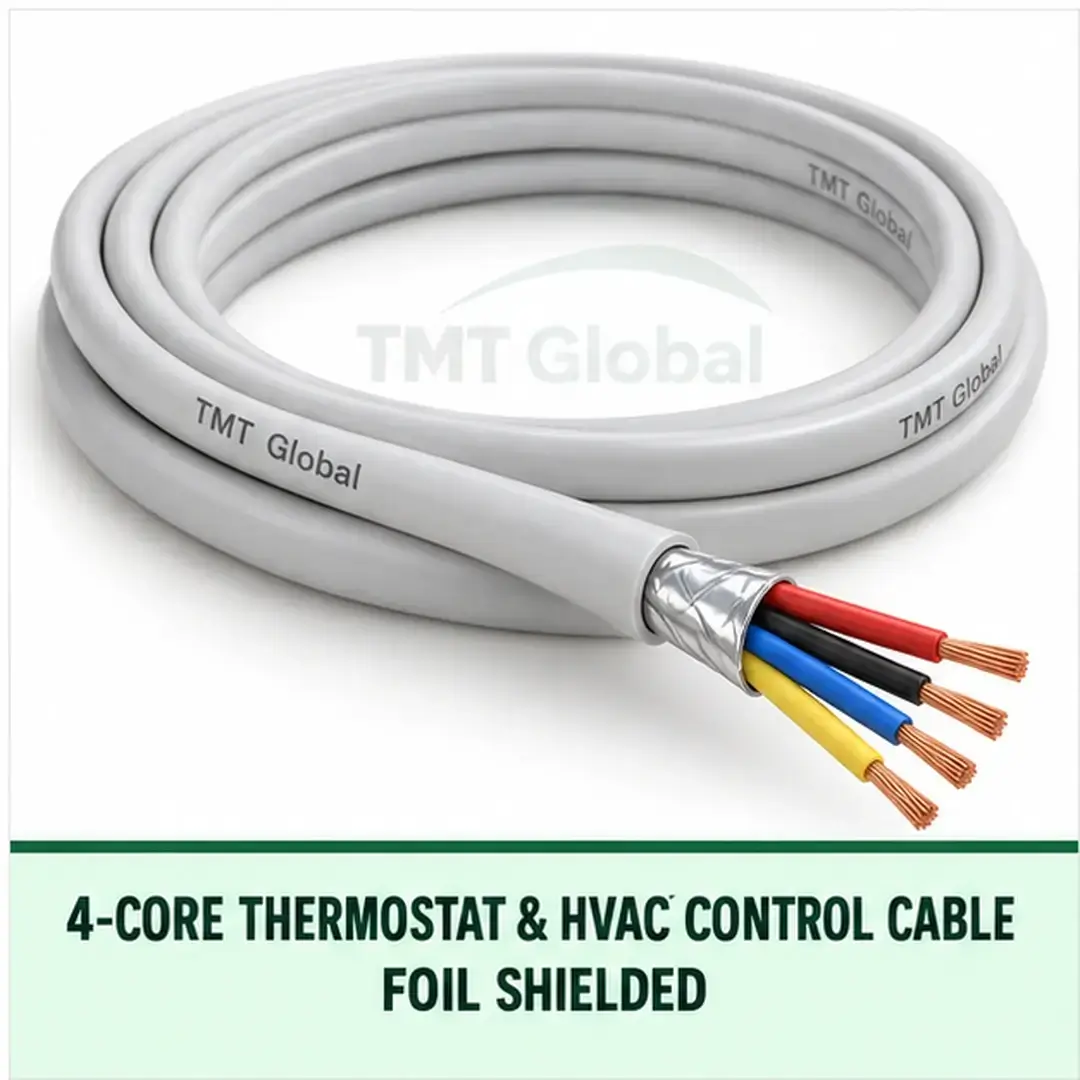

4 Core Foil Shielded Thermostat & HVAC Control Cable

Choosing the 4 Core Foil Shielded Thermostat & HVAC Control Cable

Four conductors cover a typical heating and cooling thermostat: heat, cool, fan, power and common. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 2 Core Foil Shielded Thermostat & HVAC Control Cable · 6 Core Foil Shielded Thermostat & HVAC Control Cable · 8 Core Foil Shielded Thermostat & HVAC Control Cable · 4 Core Unshielded Thermostat & HVAC Control Cable

Order code: 04S-TH. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 4 Core Foil Shielded Thermostat & HVAC Control Cable Series

TMT Global 4 Core Foil Shielded Thermostat & HVAC Control Cable is a configurable fixed-installation cable family for standard HVAC thermostat, fan/control and compact heat-pump control circuits. The product page fixes the 4-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 4 colour-identified bare-copper conductors
• Overall aluminium/polyester foil + tinned-copper drain wire
• 16, 18 and 20 AWG Series options; 18 AWG is the primary market size
• PVC, LSZH and outdoor PE jacket choices
• Round fixed-installation thermostat/HVAC-control construction
• Exact searchable ordering code for every standard combination

TYPICAL  APPLICATIONS

• standard HVAC thermostat, fan/control and compact heat-pump control circuits
• residential, commercial and light-industrial HVAC control wiring
• thermostats, fan-coil units, air handlers and heat-pump controls
• low-voltage relay, zone-control and equipment-interface circuits
• electrically noisy routes requiring screened control wiring

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
