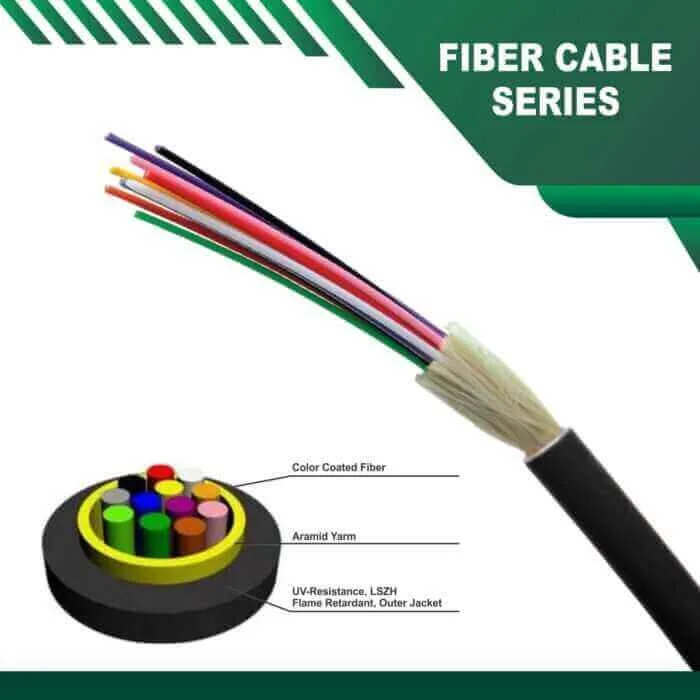

adss optical fiber cable multimode 6 core om3

(1 customer review)

د.إ12.00

General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 6
Fiber Type : 50/125 OM3
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM) : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-063LDK

0 People watching this product now!
Description

Understanding TMT Global’s adss optical fiber cable Multimode 6-Core OM3 Optical Fiber Cable in Saudi Arabia

Introduction to TMT Global’s Optical Fiber Cables

TMT Global is a notable player in the telecommunications industry, providing advanced solutions for connectivity. Among their products, the multimode 6-core OM3 optical fiber cable stands out for its efficiency and speed. This cable is quite relevant in the context of Saudi Arabia’s growing demand for reliable data transmission systems.adss optical fiber cable multimode 6 core om3

Key Features of Multimode 6-Core OM3 Cable

The OM3 optical fiber cable from TMT Global is designed for high-performance network infrastructures. Its six-core design allows for multiple data channels, which enhances bandwidth and reduces latency during information transfer. This is particularly important in sectors such as education, healthcare, and enterprise operations within Saudi Arabia where stable connectivity is essential.

Advantages of Using OM3 Optical Fiber Cable

The benefits of using the multimode 6-core OM3 optical fiber cable are numerous. First, it offers improved data transfer rates over longer distances compared to traditional copper cables. Second, it ensures low signal loss, making it a cost-effective solution for businesses looking to expand their network capabilities. TMT Global’s product is tailored to meet the stringent standards necessary for high-speed internet and robust communication networks in the region.

In conclusion, choosing TMT Global’s multimode 6-core OM3 optical fiber cable can significantly improve connectivity and performance for various applications in Saudi Arabia. Its advanced design and features make it a preferred choice for organizations aiming to upgrade their existing infrastructures.

PHYSICAL DESCRIPTION

  • Products: multi mode Fiber optic cable
  • Tube Filling Compound: Thixotropic jelly /N
  • Fiber Type: 50/125 OM4
  • Tube material: PBT ( Polybutylene Terephthalate)
  • Armored: N
  • Packing Detail
  • Fiber Count: 6,8,12,24,
  • Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
  • Cable Diameter(mm): 4.2*-12
  • Cable Weight(kg/km): 45±
  • Length/ Drum: 2000 m Drum ±5%
  • Ripcord: Polyester cord
  • Outer Jacket: PE,MDPE, LSZH

Mechanical and Environmental Properties

Physical tests                                                               Value                                                   Standard
Tensile Strength                                                                 2700 N (During Installation)              IEC 60794-1-E1
                                                                                                1700 N (During Operation)
Impact Resistance                                                              10J, 3 impacts                                        IEC 60794-1-E4
Crush Resistance                                                                220 N/cm                                                IEC 60794-1-E3
Temperature Cycling                                                         -40 to +70 °C                                          IEC 60794-1-F1
Flame Retardancy                                                              According to IEC 60332-3                   IEC 60332-3
Cable Bending Radius
Bend Radius (during installation)                                  20x Cable Diameter                                IEC 60794-1-2-E11A
Bend Radius (during Service) 1                                       0x Cable Diameter                                  IEC 60794-1-E11
Repeating Bending                                                             20x Cable Diameter                               IEC 60794-1-E6
Temperature Range)
Operation Temperature                                                   -40 to +70 C                                             IEC 60794-1-2-F1
Storage and Transportation Temperature                   -40 to +70 C
Installation Temperature                                                 -30 to +60 C

Optical Characteristics

Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
