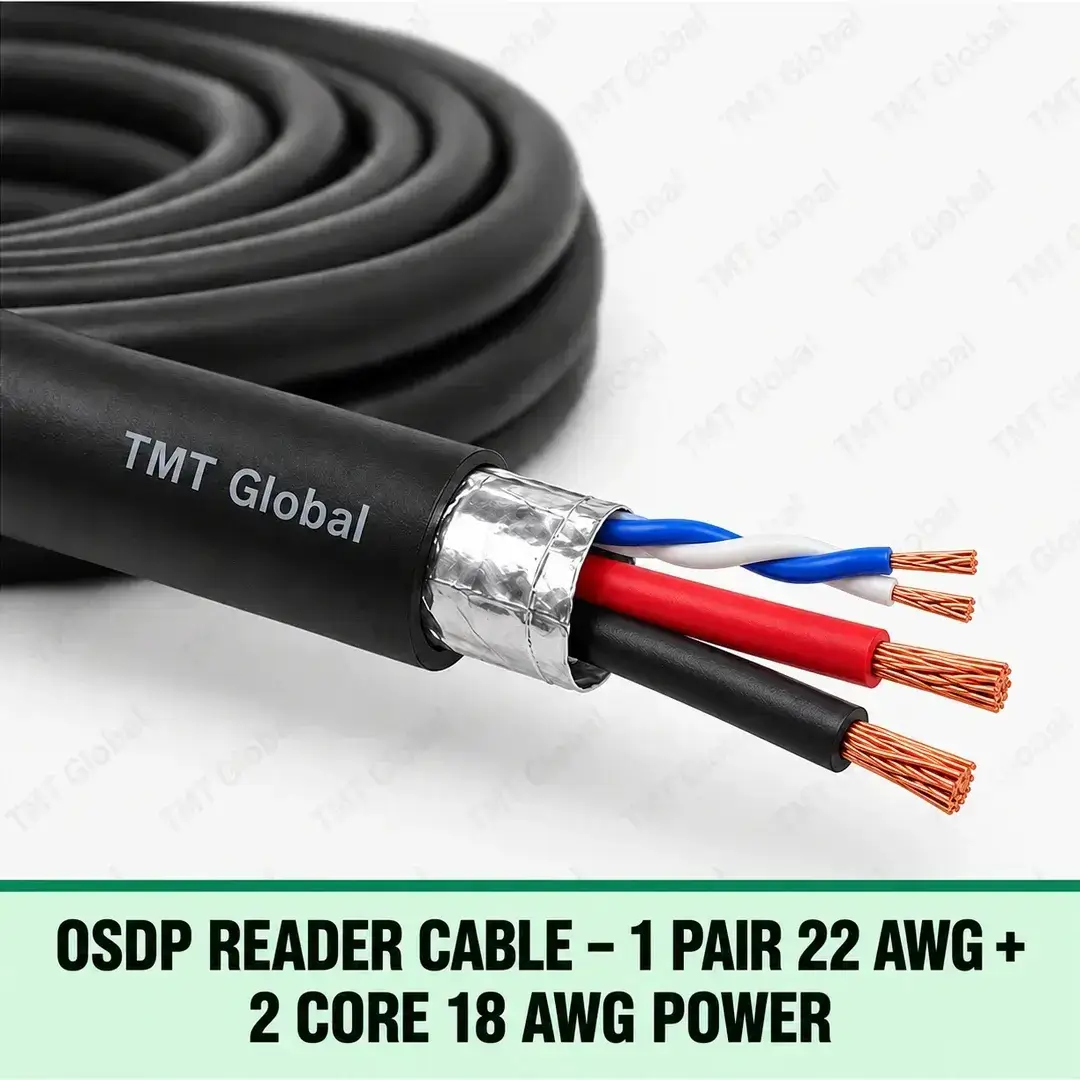

TMT Global OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power, one small 22 AWG twisted foil-shielded data pair plus two 18 AWG insulated power conductors, exactly four copper tips, power cores modestly thicker than data pair.

OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power

KEY FEATURES

  • Access-control-specific construction
  • 1PR22 + 2C18
  • 120 ohm data pair shielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: OSDP-22-18-AO18 Category:
Description

TMT OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power Series

TMT Global OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power is a controlled Security & ELV cable family for professional door access-control installations. Modern OSDP reader cable combining one true twisted, shielded RS-485 data pair with a dedicated 18 AWG power pair in one jacket. The cable architecture follows current OSDP installation practice. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 1PR22 + 2C18
  • 120 ohm data pair shielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • OSDP readers
  • Secure reader bus
  • Reader power + RS-485

 Technical Specifications

PARAMETER TECHNICAL SPECIFICATION
Product family OSDP Reader Cable – 1 Pair 22 AWG + 2 Core 18 AWG Power
Series OSDP-22-18-AO18
Primary function OSDP reader
Conductor schedule 1PR22 + 2C18
Conductor construction Stranded copper conductors
Screening Shielded data pair; 120 ohm nominal
Cable form Round / common jacket
Jacket options PVC / LSZH
Standard colours Grey
Standard package 305 m
Installation / protocol OSDP / 2-wire RS-485 access-control link
Series status PVC / LSZH: Core market

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
18 AWG 0.823 PVC / LSZH
22 AWG 0.326 PVC / LSZH
Additional information
AWG22 awg
BrandTMT Global
ColourGrey
Jacket TypePVC, LSZH
Length305 m
