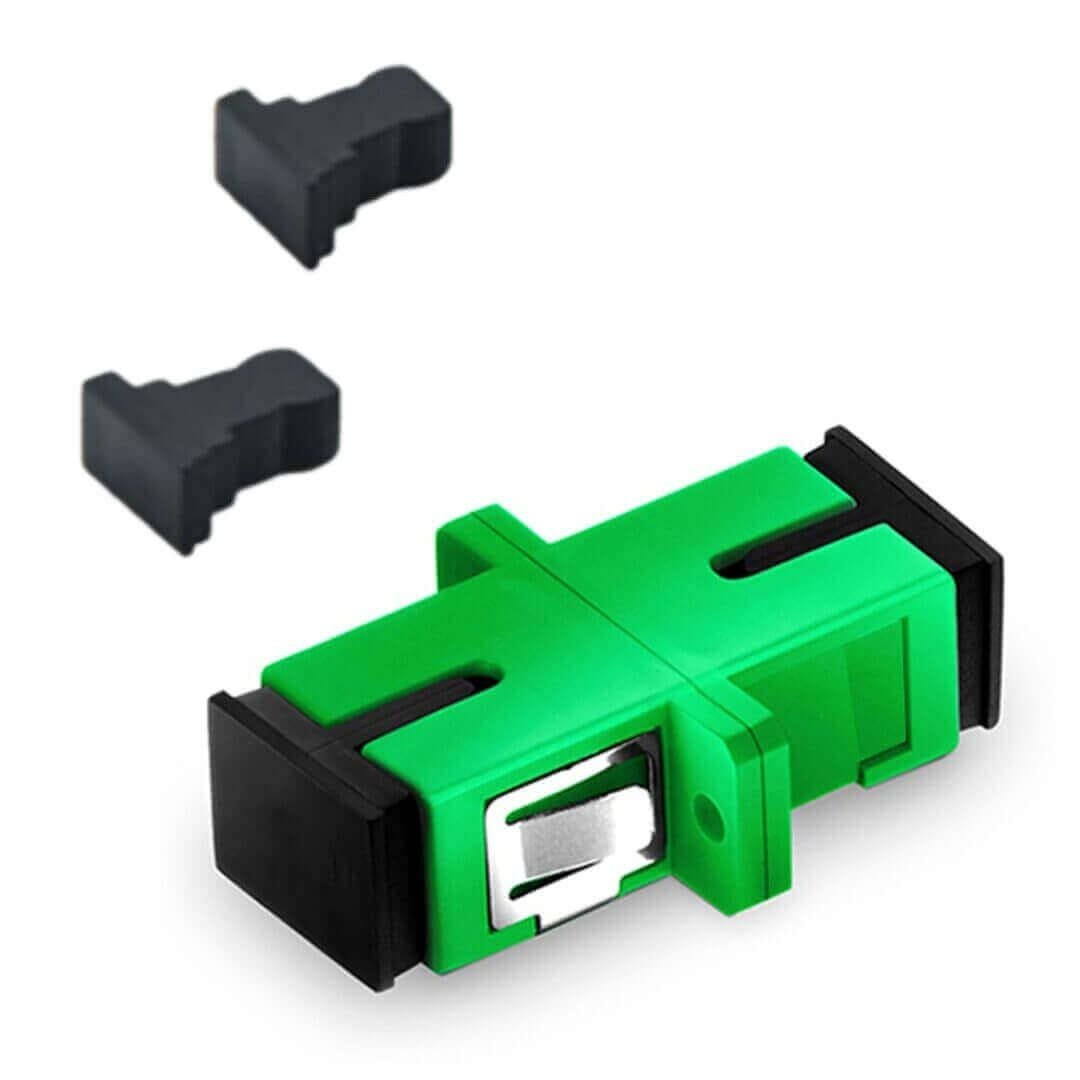

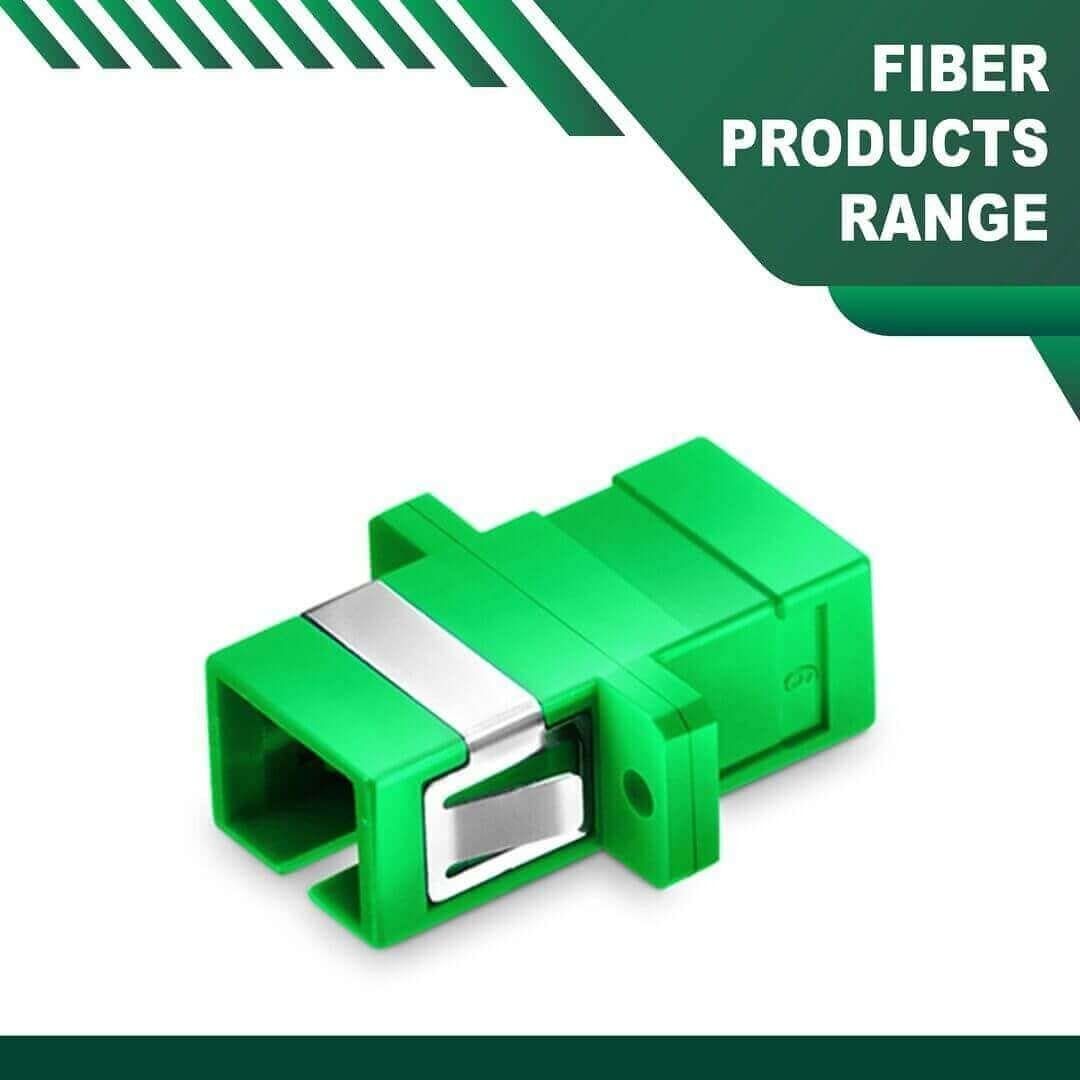

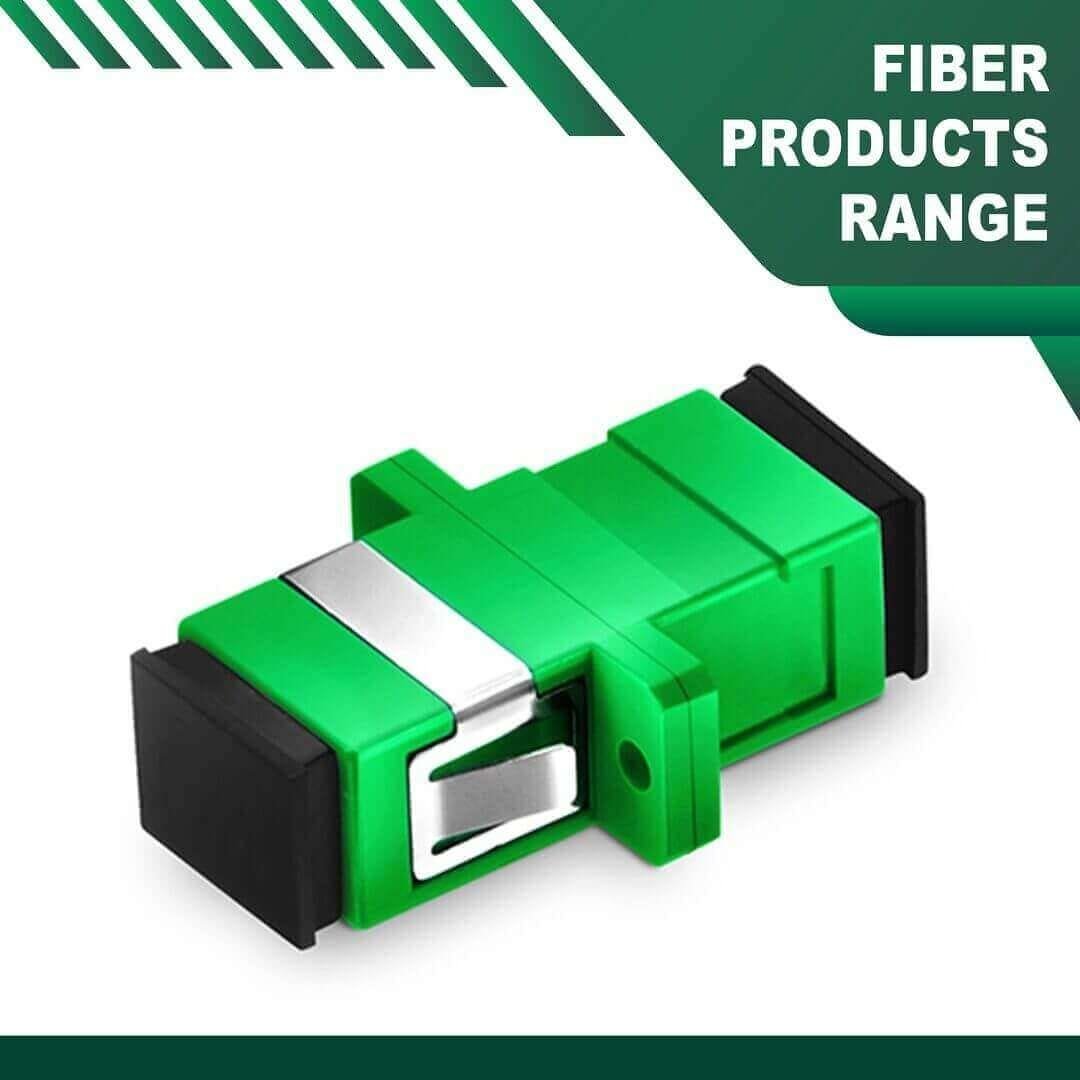

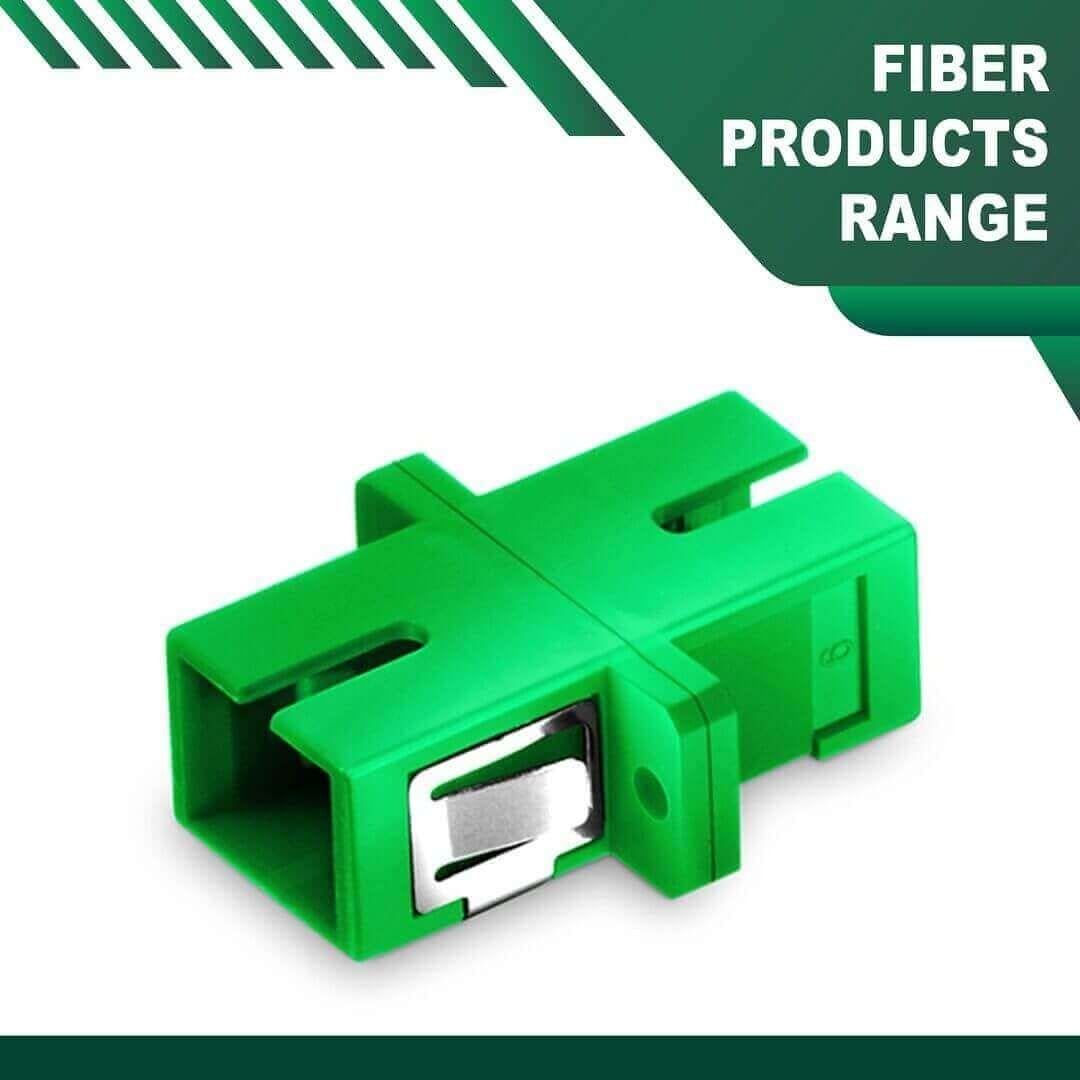

Optical Connector adapter SC-APC Single Mode Simplex
د.إ21.00
General Specification
Adapter Type : SC
Polish Type : APC
Body Type : Simplex
Fiber Mode : Single Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products ID : TMT-SCSXA1G
TMT GLOBAL Optical Connector adapter SC-APC Single Mode Simplex
TMT GLOBAL Explore the importance of optical connector adapters in fiber optic communication systems. Learn about the features of the LC-APC single mode duplex adapter, including low insertion loss, high return loss, and its bidirectionally capabilities. Discover its applications in telecommunications, data centers, and local area networks, and how it maintains reliable connections in high-density environments. Improve your understanding of networking equipment and enhance data transmission efficiency with the right optical connectors. Optical Connector adapter SC-APC Single Mode Simplex
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy Optical Connector adapter SC-APC Single Mode Simplex
Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: APC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85
Environment and Mechanical
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC， 95%， 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC
Storage Temperature -40ºC to +85ºC
