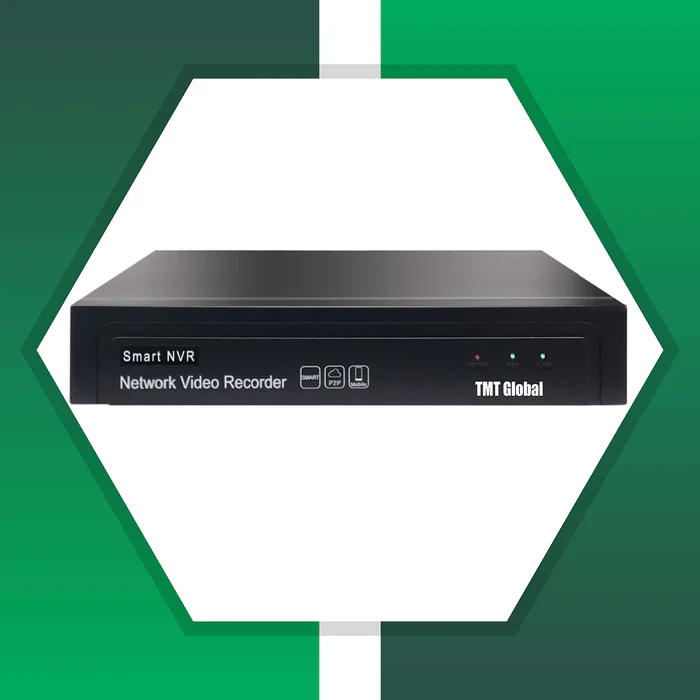

16ch stand alone network video recorder
د.إ250.00
General Specification
Operating System: Embedded LINUX operating system
Video Standard: H.26 5 +/ H.26 5 /H.264
Power Supply: DC52V 2.3A
Working Temperature: -10℃–＋55℃
Working Humidity: 10％-90％
Power Consumption: (no HDD) POE≤ 104W， N VR main board ≤8 W
Dimensions Device： 350mm×240mm×68mm，
Packing： 409mm×365mm×129m
Weight (Without HDD): N.W.： 1.8Kg；
Packing : 3 .2 Kg
Product ID: TMT-SP16118
TMT GLOBAL 16ch stand alone network video recorder
Feature:
- 16ch stand alone network video recorder
- H.265 16CH 5MP 1U NVR
- Support TMTEYE P2P cloud services
- Provide Networked Centralized Monitoring and Management Software
- Support 265/H.264 Coding Front end Adaptive Access
- Support ONVIF, High Profile S and High Profile G
Product highlights
Product highlights 16ch stand alone network video recorder
Support H.265+/H.265/H.264 coding front end adaptive access.
Support ONVIF, High profile S, High profile G, and can be connected to network cameras that comply with ONVIF, RTSP standards made by many major manufacturers.
Support IPC front-end Intelligence: target count, object left/lost, area detection, line crossing.
Support TMTEYE P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal access to NVR anytime, anywhere.
Support immediate playback function under preview screen without affecting other channel preview.
Support for adaptive bit stream preview and playback 4 screen maximum support 1920*1080, single screen 3840*2160.
Provide networked centralized monitoring and management software
Specification
ITEM: 16ch stand alone network video recorder
Operating System Embedded LINUX operating system
Video Standard H.26 5 +/ H.26 5 /H.264
Intelligent Support IPC support
With its own TMT Global intelligent IPC: target count, object left/lost, area detection, line crossing With its own TMT
Global intelligent IPC: target count, object left/lost, area detection, line-crossing , sound detection, f ire detection, video
diagnostic detection.
Video & Audio Input
Video Input 16 digital（ 3840*2160 ） + 16 Preview + 16 Playback ， 16ch 4K or below channel IPC
Bandwidth 80MB
Audio Input IPC composite stream network audio input
Video & Audio Output
Preview Split In 16 ch mode， 16 screens split max sub-stream D1( 7 04*576) ， single screen main stream
VGA Output 1ch.
Video & Audio Coding
Video Resolution 4K/5MP/4MP/3MP/1080P and below resolution Synchronized Playback 4ch
External Port Internet Port 1x，RJ45 10M/100M adaptive Ethernet port USB Port 2xUSB2.0，Front 1x ，Rear 1x
HDD HDD Port 2xSATA MAX Capacity Single port up to 8TB
POE Port 8x independent 10/100M pbs Ethernet port ，
support 200M network cable Support Standard IEEE802.3af
P2P Remote Monitoring TMTEYE
Supports iPhone, iPad, Android Smart phone
Supports Windows 7 and above computer client, supports Apple MAC computer client
Power Supply DC 52V 4.62A
Working Temperature -10℃–＋55℃
Working Humidity 10％-90％
Power Consumption (no HDD) POE≤208 W ， N VR main board ≤8 W
Dimensions Device ： 350mm×240mm×68mm， Packing ： 409mm×365mm×129m
Weight (Without HDD) N.W. ： 2Kg； Packing ： 3.5Kg
