Understanding Cat 6 Cabling Color Code: Insights from TMT Global Technology Ltd in Saudi Arabia

Introduction to Cat 6 Cabling

Category 6 (Cat 6) cabling is a type of twisted pair cable used primarily for Ethernet and other network physical layers. It is designed to support data transfer rates of up to 10 Gigabits per second (Gbps) over distances up to 55 meters, making it a popular choice for high-speed networks. Cat 6 cables are backward compatible with Cat 5 and Cat 5e cables, which enables users to upgrade their network infrastructure without completely replacing existing cables. These cables have improved insulation and reduced crosstalk, enhancing their reliability and performance in data transmission.Cat 6 Cabling Color Code

The specifications of Cat 6 cabling include a bandwidth capacity of up to 250 MHz, which is significantly higher than that of its predecessors, allowing for faster data communication and better handling of network traffic. This feature is especially critical in environments where multiple devices operate simultaneously, such as offices, data centers, and residential areas with advanced networking needs.network cable color

One of the significant advantages of Cat 6 cabling is its ability to support Power over Ethernet (PoE), providing not only data transmission but also power to devices, such as IP cameras and wireless access points, through the same cable. This capability simplifies installations and reduces clutter associated with multiple cables.

TMT Global Technology Ltd stands out as a key manufacturer and supplier of Cat 6 cabling in Saudi Arabia, contributing to the advancement of local network infrastructure. With a commitment to quality and innovation, TMT Global Technology Ltd ensures that its products meet international standards, providing reliable solutions tailored to the needs of various industries. Their expertise in Cat 6 cabling emphasizes the importance of selecting the right cabling systems to enhance network performance and efficiency.

What is Cat 6 Cabling?

Cat 6 cabling, a key component of modern network infrastructure, is designed to support high-speed data transmission across various applications. It represents the sixth generation of twisted pair cabling and offers significant improvements over its predecessor, Cat 5e. One of the primary advantages of Cat 6 cables lies in their capacity to handle 10 gigabits per second (Gbps) over short distances, which is a marked enhancement compared to Cat 5e’s maximum speed of 1 Gbps.

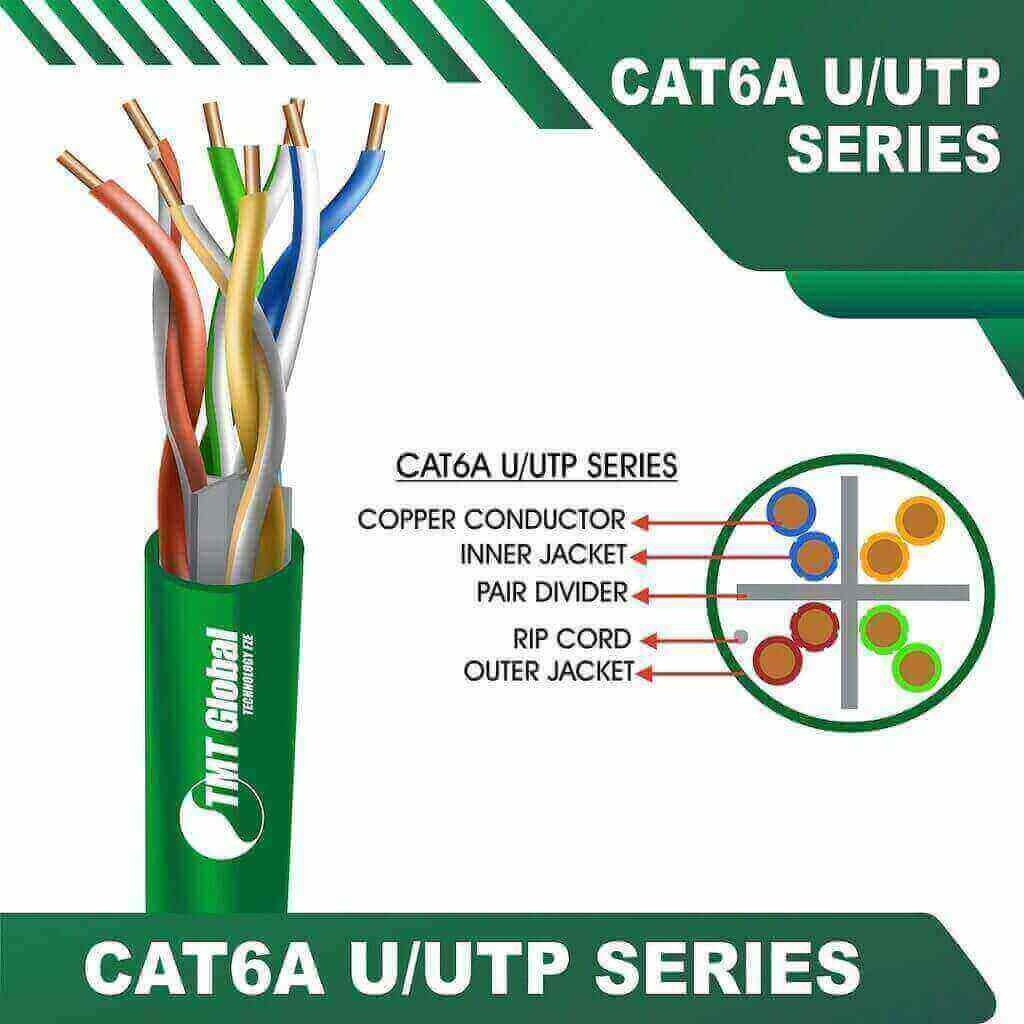

Constructed from four twisted pairs of copper wire, Cat 6 cabling features tighter twists and a thicker gauge than previous categories. This design minimizes crosstalk and electromagnetic interference, thereby enhancing the overall reliability and efficiency of data transmission. The nominal maximum length for a Cat 6 cable is 100 meters, which is suitable for most business and residential networking needs.cat6 color code

Because of its exceptional performance, Cat 6 cabling is particularly effective for high-bandwidth applications, such as video streaming, online gaming, and data centers that require rapid data transfers. Businesses that utilize VoIP (Voice over Internet Protocol), video conferencing, and large file transfers can greatly benefit from the enhanced speed and reduced latency offered by Cat 6 technology.

In terms of installation, Cat 6 cables are backward compatible with earlier standards, meaning they can be employed in environments using older cabling without any issues. However, to fully leverage the benefits of Cat 6 cabling, it is crucial to ensure that the connecting hardware, such as switches and routers, also support the Cat 6 specifications. By embracing Cat 6 technology, organizations can prepare their networks for the increasing demands of contemporary digital communication while ensuring robust and future-proof connectivity.ethernet cable color codes

Importance of Color Code in Cabling

The color code in networking cabling, particularly with Cat 6 cabling, plays a vital role in ensuring a systematic approach to installation, troubleshooting, and maintenance. Recognizing the significance of this color coding can profoundly impact the efficiency and performance of network systems. Each wire within the Cat 6 cable is assigned a specific color, typically following the T568A or T568B standards. This organization allows technicians to easily identify and manage individual wires, ultimately contributing to a more streamlined cabling infrastructure.

Adherence to the color code facilitates proper installation. By following the designated colors, installers can ensure that the twisted pairs are connected correctly, which is essential for maintaining signal quality and minimizing interference. Incorrect wiring can lead to significant degradation of network performance, resulting in slower speeds and connectivity issues. Therefore, a clear understanding of the color code not only aids in the physical setup of the cabling but also promotes optimal functionality throughout its lifecycle.to connect

Moreover, color coding significantly enhances troubleshooting efficiency. When network issues arise, technicians can quickly identify potential wiring faults by referencing the color-coded system. This expedites the diagnostic process, allowing for faster repairs and reduced downtime. In high-stakes environments, such as those commonly found in Saudi Arabia’s growing IT sector, timely troubleshooting is crucial for maintaining business operations and continuity.

Regular maintenance also benefits from a structured color coding system. When technicians are familiar with the colors associated with each wire, they can easily monitor and test cable performance. This proactive approach helps in identifying potential problems before they escalate, ensuring ongoing network reliability. In conclusion, the importance of the color code in Cat 6 cabling cannot be overstated, as it is essential for achieving high-performance networking solutions in both installation and maintenance phases.

TMT Global Technology Ltd: A Leader in Cabling Solutions

TMT Global Technology Ltd has emerged as a prominent name in the realm of cabling solutions in Saudi Arabia, particularly renowned for its manufacturing of Cat 6 cabling. Founded with a vision to provide advanced networking solutions, TMT has consistently prioritized quality and innovation since its inception. The company recognized the growing demand for reliable and efficient cabling systems amid the rapid technological advancements in the telecommunications sector.

With a commitment to excellence, TMT Global Technology Ltd focuses on developing products that meet international standards and cater to the unique needs of various industries. Their Cat 6 cabling is designed to support high-speed data transmission and minimize interference, reflecting the company’s dedication to delivering superior networking solutions. By investing in cutting-edge technologies and adhering to rigorous quality control processes, TMT has established a strong reputation for reliability and performance.

when planning horizontal cabling, what is the maximum allowable distance that can be used?

The maximum allowable distance for horizontal cabling is 100 meters (328 feet). The maximum allowable distance for horizontal cabling is 100 meters (328 feet). Horizontal cabling is a crucial component of network infrastructure that connects workstations to the main distribution frame or telecommunications room. It must adhere to industry standards to ensure optimal network performance and reliability. Proper installation and maintenance of horizontal cabling are essential to minimize signal degradation and ensure efficient data transmission. Following best practices and using high-quality components are key factors in achieving a robust horizontal cabling system.

The mission of TMT Global Technology Ltd revolves around innovation and customer satisfaction. By continuously exploring new materials and manufacturing techniques, the company aims to lead the market in providing state-of-the-art cabling solutions that not only meet but exceed customer expectations. Their team, composed of experienced professionals, works tirelessly to enhance product quality and to ensure that TMT’s offerings remain ahead of industry trends.

Moreover, TMT has built strong partnerships with various stakeholders in the tech ecosystem, which reinforces its position as a leader in the cabling industry. Their engagement with local suppliers and international technology firms further enhances their capability to provide cutting-edge solutions, ensuring that customers in Saudi Arabia benefit from the latest in networking technology.

Cat 6 Cabling Color Code Standards

Understanding the color code standards for Cat 6 cabling is fundamental for ensuring efficient network performance and compliance with installation best practices. Two prominent wiring standards widely adopted in the industry are T568A and T568B. These standards are recognized internationally and denote specific color sequences for wiring configuration.

The T568A standard is characterized by its wiring scheme, which prioritizes the green pair. The pinout for T568A is as follows: Pin 1 is white/green, Pin 2 is green, Pin 3 is white/orange, Pin 4 is blue, Pin 5 is white/blue, Pin 6 is orange, Pin 7 is white/brown, and Pin 8 is brown. This wiring scheme is often utilized in residential installations, as it provides optimal compatibility with various network devices and supports both voice and data transmission.

On the other hand, the T568B standard reverses the order of the orange and green pairs. The pinout for T568B is as follows: Pin 1 is white/orange, Pin 2 is orange, Pin 3 is white/green, Pin 4 is blue, Pin 5 is white/blue, Pin 6 is green, Pin 7 is white/brown, and Pin 8 is brown. T568B is frequently used in commercial environments and is particularly favored for its historical compatibility with older networks.

Both T568A and T568B are capable of supporting a range of applications, including voice over IP (VoIP), video conferencing, and standard internet connectivity. Installation technicians should select one of these standards based on existing infrastructure or customer specifications to minimize complications. Adhering to these color coding standards ensures that installers have a clear understanding of which wires connect to each component, ultimately leading to effective and error-free installations.

Installation Best Practices for Cat 6 Cabling

Installing Cat 6 cabling correctly is essential to ensure optimal performance and minimize network issues. The adherence to the prescribed color code during the installation process is one of the first best practices that should not be overlooked. The color code serves a vital role in maintaining proper data transmission and reducing cross-talk. Each twisted pair within the cabling has a specific color scheme that must be followed diligently. It is advisable to refer to the TIA/EIA standards for the correct wiring scheme to achieve the desired results.

When beginning the installation, it is crucial to gather the right tools. Essential tools include a cable tester, wire strippers, and modular connectors. A cable tester not only verifies the integrity of the installation but also helps in identifying any wiring issues that could impair network performance. Additionally, wire strippers allow for precise removal of the protective jacket without damaging the twisted pairs inside. These tools significantly contribute to a high-quality installation.

Implementing proper techniques during installation is equally important. The cabling should be run without excessive bending, which can damage internal wiring and degrade performance. It is advisable to maintain the minimum bend radius specified by the manufacturer. Furthermore, ensure that the cable is not tightly bundled, as this can lead to heat build-up and electromagnetic interference. Avoid common mistakes such as untwisting the pairs more than necessary; the twisted nature of the pairs is critical in reducing interference and ensuring signal integrity.

In conclusion, following these best practices when installing Cat 6 cabling not only enhances network efficiency but also fosters a reliable communication infrastructure. By adhering to the color code and utilizing the appropriate tools and techniques, installers can avoid common pitfalls and ensure a successful implementation of Cat 6 cabling.

Troubleshooting Common Cat 6 Cabling Issues

Cat 6 cabling has become a standard choice for high-speed networking due to its ability to support gigabit Ethernet and its efficiency in reducing crosstalk. However, like any technical solution, it may experience issues that can impede performance or testing outcomes. Recognizing these prevalent problems and understanding the wiring color code is essential for effective troubleshooting.

One of the most common issues encountered with Cat 6 cabling is connectivity problems. These may manifest as intermittent connections or complete signal loss. A frequent cause of this issue lies in incorrect terminations. Each Cat 6 cable consists of four twisted pairs of wires, and the order of the color-coded pairs must be adhered to strictly. The T568A and T568B standards outline the specific wiring configuration, and adhering to these standards is crucial to ensure that the data transmission is optimized. If you find that connections are unreliable, double-checking the wiring sequence is an important first step.

Performance degradation can also affect your Cat 6 cabling. Factors such as excessive bending, untwist lengths exceeding recommendations, or running cables parallel to electrical lines can introduce interference and noise, leading to reduced data rates. To troubleshoot this, examine the installation environment. Ensuring that cables are not tightly bent and are routed properly away from potential sources of electromagnetic interference can enhance performance dramatically.

In addition, using tools like a cable tester can greatly assist in identifying faults within the cabling. These devices check for continuity, signal loss, and other integrity issues. Understanding the color code associated with the cable can facilitate quickly identifying which pairs may be compromised. Addressing these common Cat 6 cabling issues with a systematic approach can lead to improved network performance and reliability. Proper troubleshooting often involves a combination of inspecting hardware, ensuring compliance with cabling standards, and utilizing testing tools effectively.

Future Trends in Networking and Cabling

The networking landscape is rapidly evolving, driven by an increasing demand for faster data transmission and enhanced connectivity. As organizations across various sectors continue to invest in infrastructure improvement, the significance of cabling solutions such as Cat 6 becomes more pronounced. Emerging trends indicate a shift toward higher bandwidth requirements, and network cabling technologies will need to adapt accordingly.

One of the notable trends is the ongoing development of 10 Gigabit Ethernet (10GbE) technology, which necessitates the use of superior cabling options beyond the standard Cat 6. While Cat 6 cabling provides adequate performance for many applications, newer standards such as Cat 6a and Cat 7 offer enhanced specifications that support faster speeds over longer distances. As more businesses transition to cloud computing and data-intensive applications, the demand for these advanced cabling solutions will likely escalate.

Another trend reshaping the networking environment is the movement towards wireless technology, such as 5G. Although wireless solutions provide remarkable mobility, their effectiveness relies on robust and efficient cabling infrastructure to support backhaul connections. As a response, companies like TMT Global Technology Ltd are actively investing in research and development of next-generation cabling solutions that can seamlessly integrate with wireless technology while ensuring stability and performance.

Moreover, the growing emphasis on smart buildings and IoT (Internet of Things) initiatives further drive the complexity of networking needs. Enhanced cabling systems will be imperative to accommodate the increasing number of connected devices within homes, offices, and industrial settings. TMT Global Technology Ltd is recognized for its pioneering advancements in cabling technology, demonstrating a commitment to meeting these evolving demands through innovative solutions designed to support current and future applications.

Conclusion

In the rapidly evolving technological landscape, understanding Cat 6 cabling and its associated color coding is essential for ensuring effective network infrastructure. This blog post has delved into the intricacies of Cat 6 cabling, detailing the significance of the color code in proper installation and management. The standardization found within these cabling systems facilitates seamless communication, minimizes installation errors, and promotes efficient data transmission. Knowledge of the color-coded pairs not only simplifies troubleshooting but also enhances overall network performance.

Furthermore, we highlighted the contributions of TMT Global Technology Ltd in Saudi Arabia, emphasizing their commitment to providing high-quality cabling solutions. As the demand for efficient connectivity continues to rise, the role of reliable cabling products cannot be overstated. TMT Global Technology Ltd stands out in the industry by offering innovative products that meet international standards and cater to a diverse range of networking needs. Their expertise in cabling technology not only ensures that customers receive superior products but also helps in future-proofing networking infrastructures, ultimately contributing to the reliability of modern communication systems.

In conclusion, investing in quality cabling solutions is paramount for both businesses and individuals aiming to build robust networking capabilities. As we move forward, a solid understanding of Cat 6 cabling, alongside the support of industry leaders such as TMT Global Technology Ltd, will serve as a crucial factor in fostering advanced and reliable networking environments. This realization paves the way for informed decision-making, facilitating the successful implementation of future technologies that rely heavily on high-performance cabling systems.
