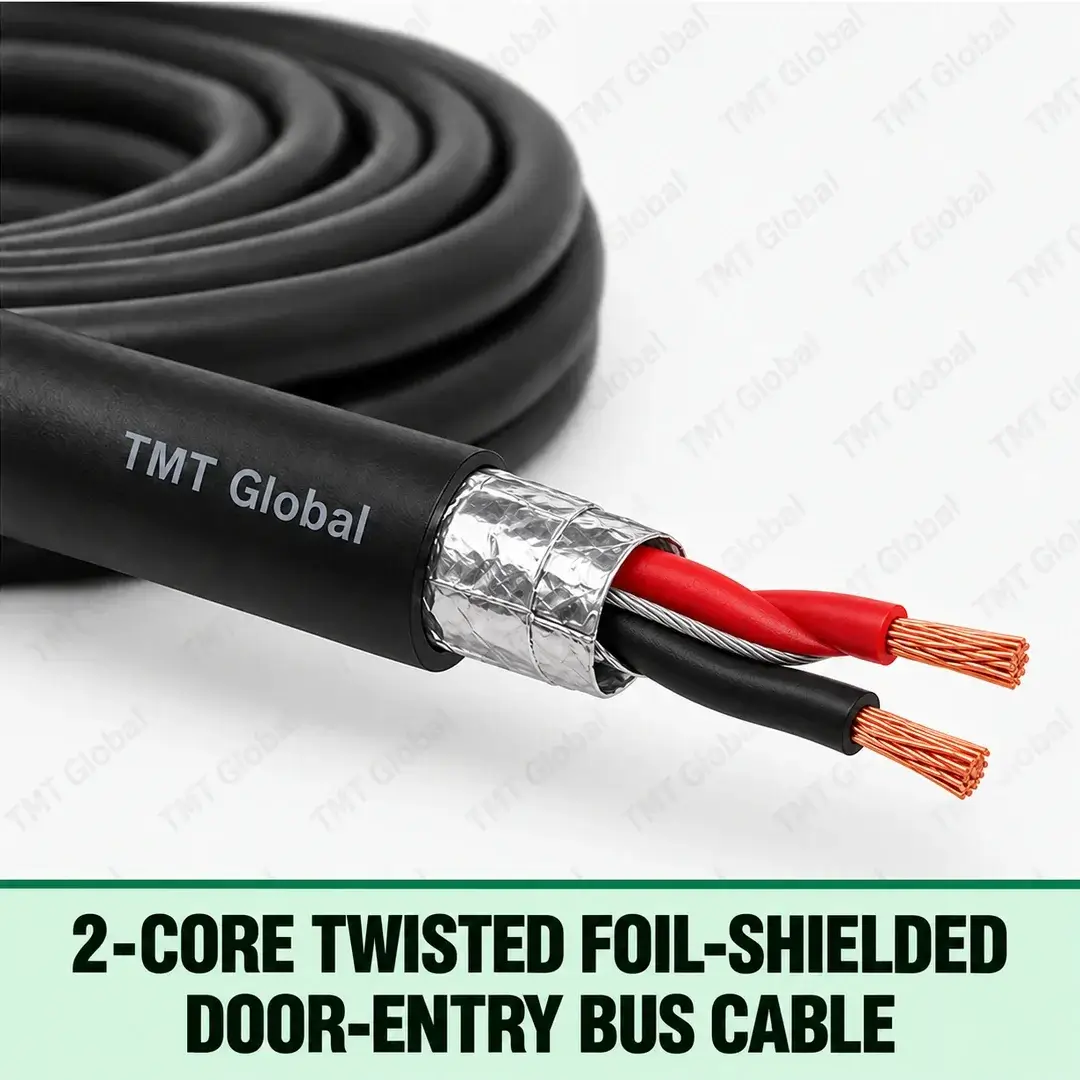

TMT Global 2-Core Twisted Foil-Shielded Door-Entry Bus Cable, black jacket, exactly one red and one black insulated stranded copper conductor twisted together under a foil shield with drain wire, two conductor tips only.

2-Wire Twisted Foil-Shielded Door-Entry Bus Cable

KEY FEATURES

  • 2-wire twisted bus
  • Overall foil + drain
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: 02S-IB Category:
Description

TMT 2-Wire Twisted Foil-Shielded Door-Entry Bus Cable Series

TMT Global 2-Wire Twisted Foil-Shielded Door-Entry Bus Cable is a controlled Security & ELV cable family for professional door-entry and intercom installations. Screened two-wire door-entry bus construction for projects requiring an overall foil screen or enhanced noise control. It is separate from the unshielded bus because the screen and drain materially change the cable construction. Exact released size/schedule and jacket variations remain searchable Series rows under this product page.

KEY FEATURES

  • 2-wire twisted bus
  • Overall foil + drain
  • PVC / LSZH / PE Outdoor
  • 305 m standard package
  • Factory evidence required for system/electrical claims

APPLICATIONS

  • Screened door-entry bus
  • EMI-sensitive routes
  • Intercom risers / backbones

Technical Specification

SPECIFICATION VALUE
Product family 2-Wire Twisted Foil-Shielded Door-Entry Bus Cable
Series 02S-IB
Primary application Screened intercom bus
Physical geometry 2-wire twisted bus
Conductor size / schedule 18 AWG / 20 AWG / 22 AWG
Conductor material Bare copper
Screening Overall foil + drain
Outer-jacket options PVC / LSZH / PE Outdoor
Standard colours White for PVC/LSZH; Black for PE Outdoor
Standard package 305 m
Product format Fixed screened door-entry / intercom bus cabling
Series configuration Approved conductor schedule and jacket combinations shown below

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
18 AWG 0.823 PVC / LSZH / PE Outdoor
20 AWG 0.518 PVC / LSZH / PE Outdoor
22 AWG 0.326 PVC / LSZH / PE Outdoor
Additional information
BrandTMT Global
AWG18 awg, 20 awg, 22 awg
Jacket TypePVC, LSZH, PE Outdoor
ColourBlack, White
Length305 m
Download

visit: www.tmtglobal.co.uk

tmt global ul
tmt-global-BASEC
tmt global INTERTEK
tmt global IEC
tmt global ISO-9001
sira approved brand tmt global
tmt global ROHSS
tmt-global-ETISALAT
du approved brand tmt global
tmt global CE
tmt global FCC
ICC
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team. Tel: 0138053166 Mob: 0552792350 Email: info@sahilcommunication.sa Web: www.sahilcommunication.sa Short Address: EKDA6556 Building No: 6556 Street: prince bader ibn abdul aziz Secondary No: 2723 Distract: Al Khobar Ash Shamaliyah
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB18 awgPVCWhite305 m QR code for 0218BPSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB18 awgLSZHWhite305 m QR code for 0218BLSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB18 awgPE OutdoorBlack305 m QR code for 0218BKSRK-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB20 awgPVCWhite305 m QR code for 0220BPSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB20 awgLSZHWhite305 m QR code for 0220BLSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB20 awgPE OutdoorBlack305 m QR code for 0220BKSRK-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB22 awgPVCWhite305 m QR code for 0222BPSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB22 awgLSZHWhite305 m QR code for 0222BLSRW-IB
2-Wire Twisted Foil-Shielded Door-Entry Bus Cable02S-IB22 awgPE OutdoorBlack305 m QR code for 0222BKSRK-IB
