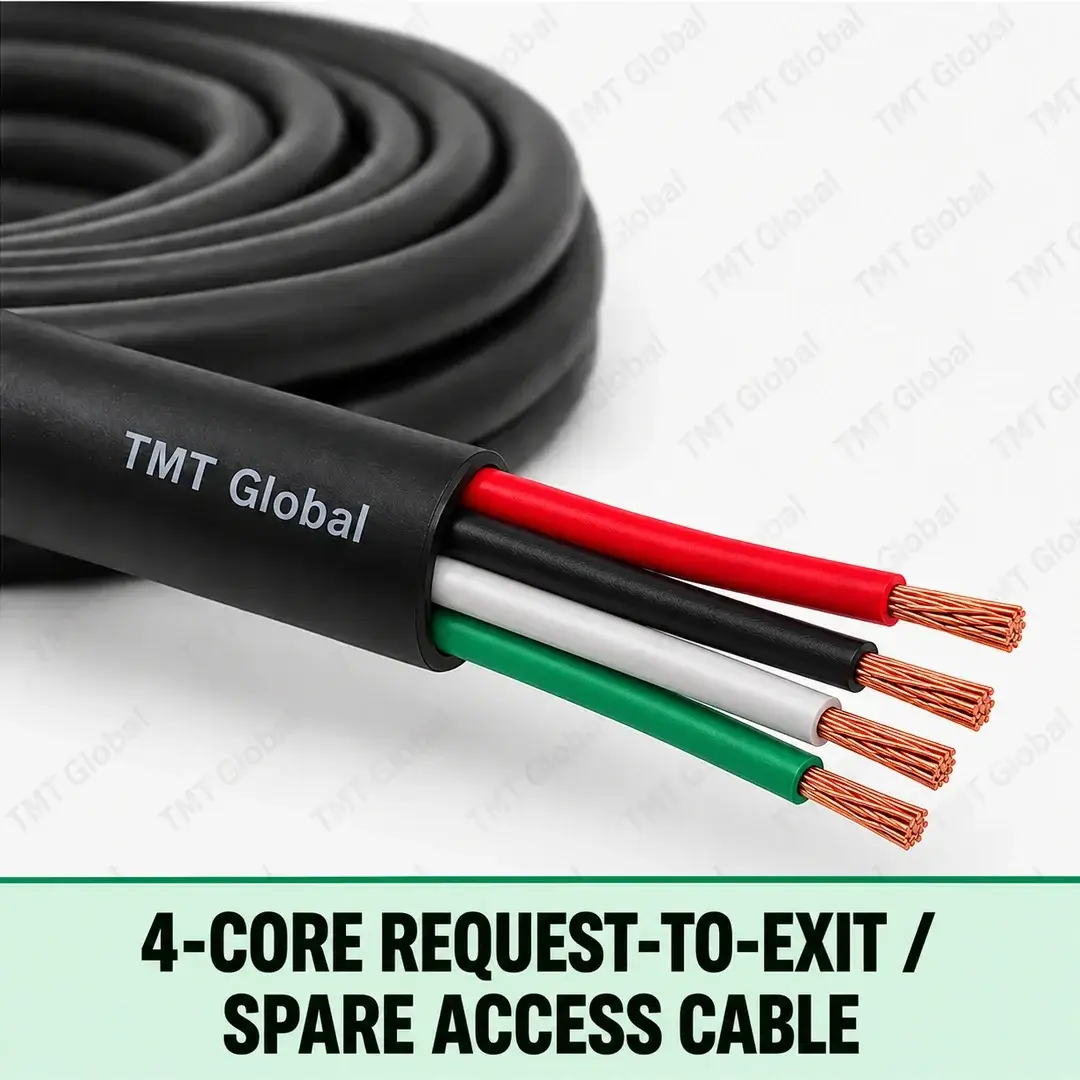

TMT Global 4-Core Request-to-Exit / Spare Access Cable, black unshielded outer jacket, exactly four colored insulated copper conductors for request-to-exit and spare access signals, four visible tips, no foil or braid.

4 Core Request-to-Exit / Spare Access Cable

KEY FEATURES

  • Access-control-specific construction
  • 4C 22/24 AWG
  • Unshielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: 04U-AD Category:
Description

TMT 4 Core Request-to-Exit / Spare Access Cable Series

TMT Global 4 Core Request-to-Exit / Spare Access Cable is a controlled Security & ELV cable family for professional door access-control installations. Four-core low-voltage cable for request-to-exit devices, push buttons, auxiliary door functions and spare control conductors within access-control installations. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 4C 22/24 AWG
  • Unshielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Request-to-exit devices
  • Exit buttons
  • Auxiliary door circuits

Technical Specifications

PARAMETER TECHNICAL SPECIFICATION
Product family 4 Core Request-to-Exit / Spare Access Cable
Series 04U-AD
Primary function REX / auxiliary
Conductor schedule 4C 22/24 AWG
Conductor construction Stranded copper conductors
Screening Unshielded
Cable form Round / common jacket
Jacket options PVC / LSZH / PE Outdoor
Standard colours Grey / Black
Standard package 305 m
Installation / protocol Low-voltage access-control wiring
Series status PVC / LSZH: Core market; PE Outdoor: Outdoor / project

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
22 AWG 0.326 PVC / LSZH / PE Outdoor
24 AWG 0.205 PVC / LSZH / PE Outdoor
Additional information
AWG22 awg, 24 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
Download

visit: www.tmtglobal.co.uk

tmt global ul
tmt-global-BASEC
tmt global INTERTEK
tmt global IEC
tmt global ISO-9001
sira approved brand tmt global
tmt global ROHSS
tmt-global-ETISALAT
du approved brand tmt global
tmt global CE
tmt global FCC
ICC
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team. Tel: 0138053166 Mob: 0552792350 Email: info@sahilcommunication.sa Web: www.sahilcommunication.sa Short Address: EKDA6556 Building No: 6556 Street: prince bader ibn abdul aziz Secondary No: 2723 Distract: Al Khobar Ash Shamaliyah
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
4 Core Request-to-Exit / Spare Access Cable04U-AD22 awgPVCGrey305 m QR code for 0422BPURG-AD
4 Core Request-to-Exit / Spare Access Cable04U-AD22 awgLSZHGrey305 m QR code for 0422BLURG-AD
4 Core Request-to-Exit / Spare Access Cable04U-AD22 awgPE OutdoorBlack305 m QR code for 0422BKURK-AD
4 Core Request-to-Exit / Spare Access Cable04U-AD24 awgPVCGrey305 m QR code for 0424BPURG-AD
4 Core Request-to-Exit / Spare Access Cable04U-AD24 awgLSZHGrey305 m QR code for 0424BLURG-AD
4 Core Request-to-Exit / Spare Access Cable04U-AD24 awgPE OutdoorBlack305 m QR code for 0424BKURK-AD
