TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable, single slim RG59 coax, central copper conductor, white dielectric and visible woven copper-braid shield, black outer jacket, no auxiliary conductors.

RG59 75 Ohm Copper-Braid Coaxial Cable

KEY FEATURES

  • RG59 controlled construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: RG59-BRAID-R5 Category:
Description

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable Series

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Classic RG59 analogue-video / CCTV construction with a 20 AWG centre conductor and braid screen. This reuses the existing RG59 product position rather than creating a duplicate generic coax page. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG59 controlled construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package

APPLICATIONS

  • Analogue CCTV video
  • Baseband video
  • Security video links

Technical Specification

PARAMETER TECHNICAL SPECIFICATION
Product family RG59 75 Ohm Copper-Braid Coaxial Cable
Series RG59-BRAID-R5
RG / impedance RG59; 75 Ω nominal family
Centre conductor 20 AWG Bare Copper
Nominal conductor area 0.518 mm² (20 AWG nominal area)
Shield construction 95% braid class
Cable form Round standalone coaxial cable
Jacket options PVC / LSZH / PE Outdoor
Standard colours Black / White
Standard package 305 m
Primary applications Analogue CCTV video • Baseband video • Security video links
Series availability PVC / LSZH / PE Outdoor; exact colour and item-code options are listed on Ordering Information (Page C).



AWG NOMINAL AREA SERIES AVAILABILITY
20 AWG 0.518 mm² PVC / LSZH / PE Outdoor
Additional information
AWG20 awg
BrandTMT Global
Jacket TypePVC, LSZH, PE Outdoor
ColourBlack, White
Length305 m
CONDUCTORBare Copper
Download

visit: www.tmtglobal.co.uk

tmt global ul
tmt-global-BASEC
tmt global INTERTEK
tmt global IEC
tmt global ISO-9001
sira approved brand tmt global
tmt global ROHSS
tmt-global-ETISALAT
du approved brand tmt global
tmt global CE
tmt global FCC
ICC
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team. Tel: 0138053166 Mob: 0552792350 Email: info@sahilcommunication.sa Web: www.sahilcommunication.sa Short Address: EKDA6556 Building No: 6556 Street: prince bader ibn abdul aziz Secondary No: 2723 Distract: Al Khobar Ash Shamaliyah
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
RG59 75 Ohm Copper-Braid Coaxial CableRG59-BRAID-R520 awgPVCBlack305 m QR code for 0120BPCRK-R5
RG59 75 Ohm Copper-Braid Coaxial CableRG59-BRAID-R520 awgPVCWhite305 m QR code for 0120BPCRW-R5
RG59 75 Ohm Copper-Braid Coaxial CableRG59-BRAID-R520 awgLSZHBlack305 m QR code for 0120BLCRK-R5
RG59 75 Ohm Copper-Braid Coaxial CableRG59-BRAID-R520 awgLSZHWhite305 m QR code for 0120BLCRW-R5
RG59 75 Ohm Copper-Braid Coaxial CableRG59-BRAID-R520 awgPE OutdoorBlack305 m QR code for 0120BKCRK-R5

Related products

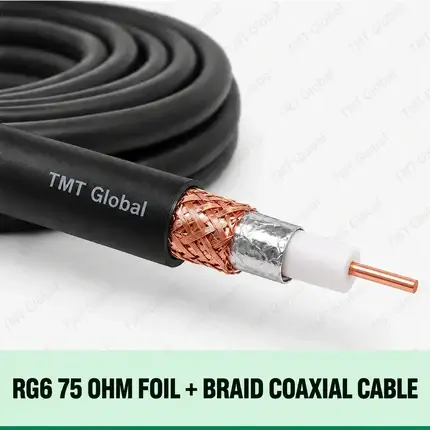

TMT Global RG6 75 Ohm Foil + Braid Coaxial Cable, single RG6 coax with one center copper conductor, dielectric, one aluminum foil wrap and one copper-braid shield, black jacket.

RG6 75 Ohm Foil + Braid Coaxial Cable

SKU: RG6-FB-R

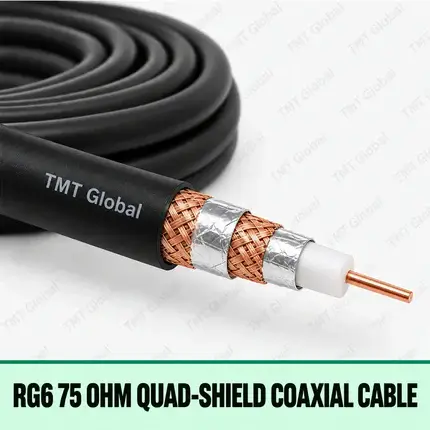

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable, single RG6 coax cable, center copper conductor with white dielectric, exactly two foil shields and two copper-braid layers, black jacket.

RG6 75 Ohm Quad-Shield Coaxial Cable

SKU: RG6-QUAD-R6

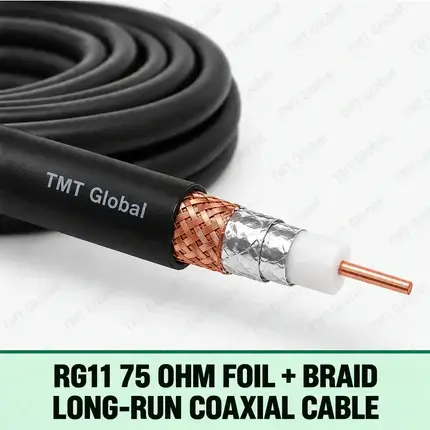

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable, single RG11 coax with one centered copper conductor, white foam dielectric, one foil shield and one copper braid shield, black jacket, no extra cores.

RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable

SKU: RG11-FB-R1

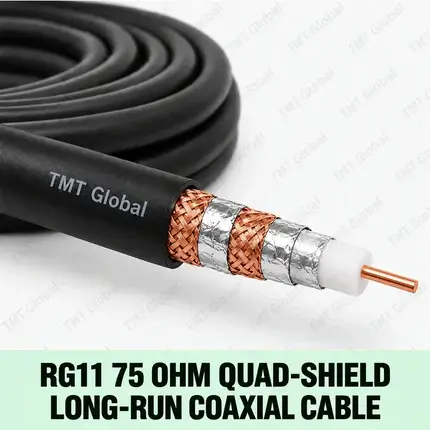

TMT Global RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable, single thick RG11 coax core with centered copper conductor, white foam dielectric, exactly two foil shields and two copper-braid layers for quad shielding, black jacket.

RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable

SKU: RG11-QUAD-R1

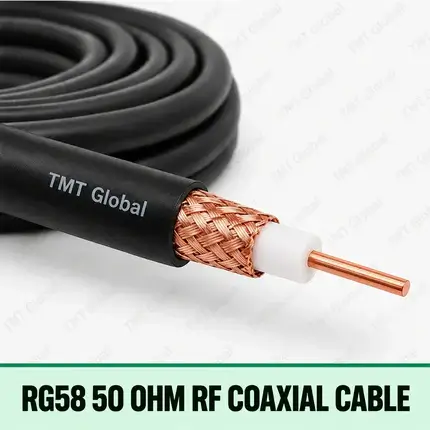

TMT Global RG58 50 Ohm RF Coaxial Cable, single black RF coax cable, one centered copper conductor in white dielectric, uniform copper-braid shield beneath black outer jacket, no auxiliary cores.

RG58 50 Ohm RF Coaxial Cable

SKU: RG58-RF-R8

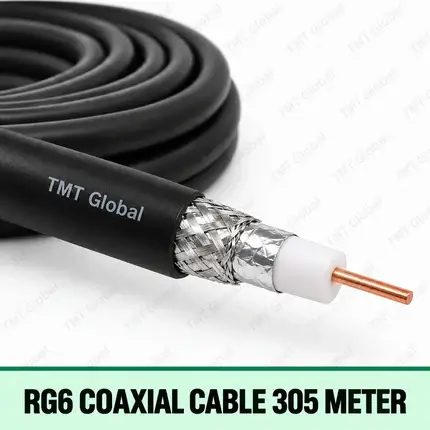

TMT Global RG6 Coaxial Cable 305 Meter, single black 75-ohm RG6 coaxial cable, one centered copper conductor, white foam dielectric, foil and braided shield layers, no auxiliary cores.

RG6 Coaxial Cable 305 Meter

SKU: TMT-R6XSCK

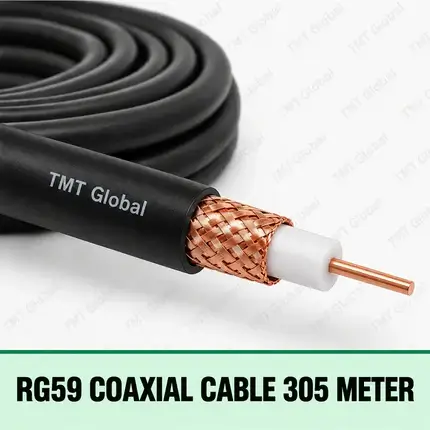

TMT Global RG59 Coaxial Cable 305 Meter, single black 75-ohm RG59 coaxial cable, one centered copper conductor, white dielectric and braided copper shield, no additional cores.

RG59 Cable Coaxial Cable 305 Meter

SKU: TMT-R5XSCK

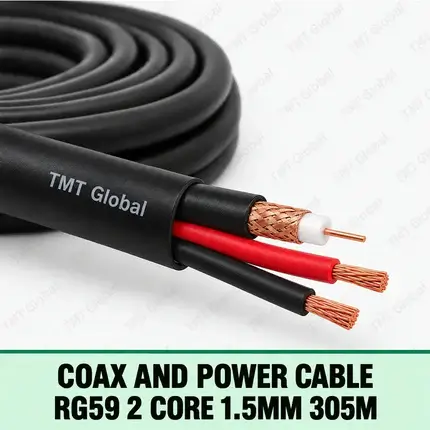

TMT Global Coax and Power Cable RG59 2 Core 1.5mm 305m, round black CCTV composite with one RG59 coax (center copper conductor, white dielectric and copper-braid shield) plus exactly two thick 1.5 mm² red/black power cores, three tips total.
