Cat 6 a wiring 23 awg 4 twisted pair FTP Cable 305m

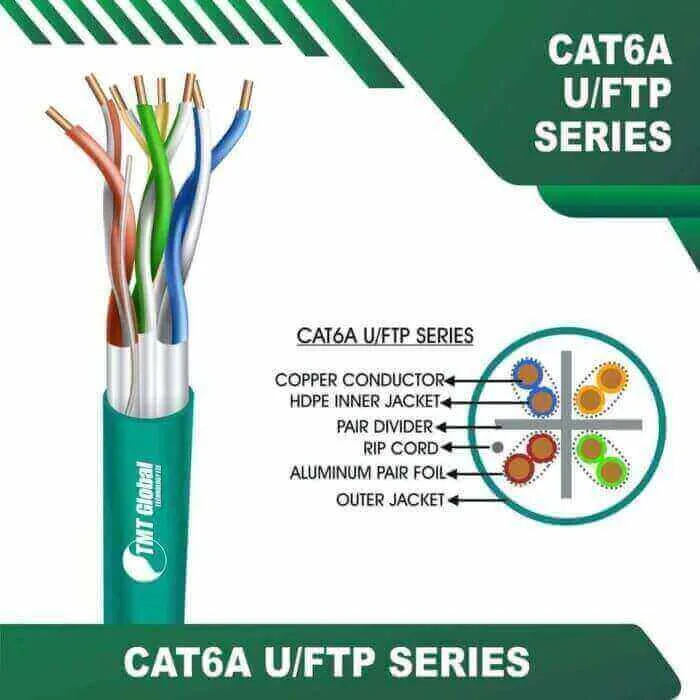

TMT GLOBAL saudi arabia Cat6a 23awg 4 twisted pair U-FTP Cable 305m

TMT Global Cat6a 23awg 4 twisted pair U-FTP Cable 305m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC 11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC 61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.Cat 6 a wiring 23 awg 4 twisted pair FTP Cable 305m

TMT Global Technology LTD

aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems.

APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

GENERAL SPECIFICATION
4 Pairs UnShielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
