cat5e 5XX48BXX f-utp outdoor 24awg 4 pair cable 305m

TMT GLOBAL cat5e 5XX48BXX f-utp outdoor 24awg 4 pair cable 305m

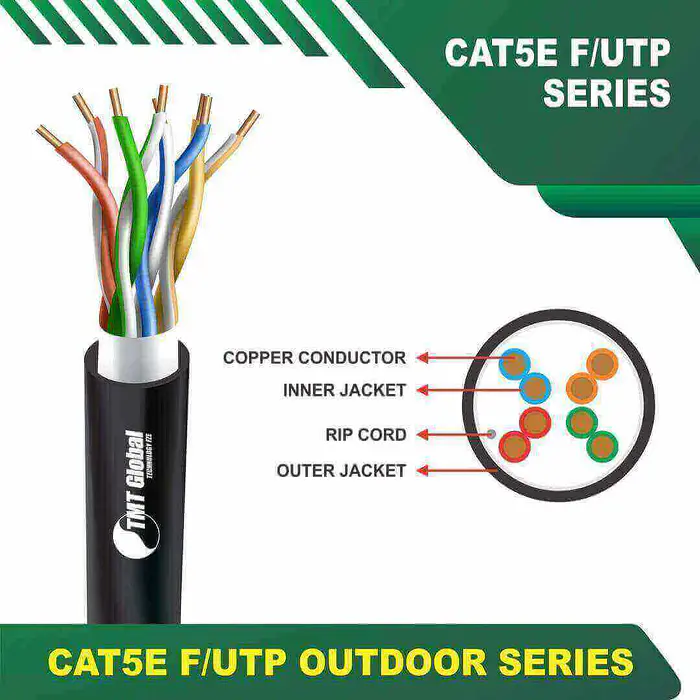

TMT Global CAT5E F-UTP Outdoor Cable is a high-quality networking solution designed for reliable outdoor installations. This cable features 24AWG solid copper conductors, 4 twisted pairs, and an overall foil shield (F-UTP) to minimize electromagnetic interference, ensuring stable data transmission. With a length of 305 meters, it is ideal for long-distance runs in outdoor environments, providing robust performance for Ethernet and other networking applications.cat5e 5XX48BXX f-utp outdoor 24awg 4 pair cable 305m

PHYSICAL AND MECHANICAL PROPERTIES

• Basic Conductor: 24 AWG BARE Copper
• Insulation: HDPE
• Number of insulated conductors: 8 twisted in 4 pairs
• Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
• Outer Jacket: LSZH
• Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
• Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
• Pulling force: 100 N MAX
• Short Term Bend Radius: 6xOD (Mm)
• Storage Temperature: -20 To +80C
• Temperature operating range: -20 to +60C
• Installation temperature range: 0 to +50C
• Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

• Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
• DC Resistance: 93 Ohm/Km max.
• Resistance unbalance: 2% max.
• Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
• Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
• Voltage rating: 72 Vdc max.
• Dielectric strength: 1500 Volts/1 minute min rms
• Velocity of Propagation (NVP): 67-69%
• Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
• Coupling attenuation: IEC 61156-5 TYPE III
