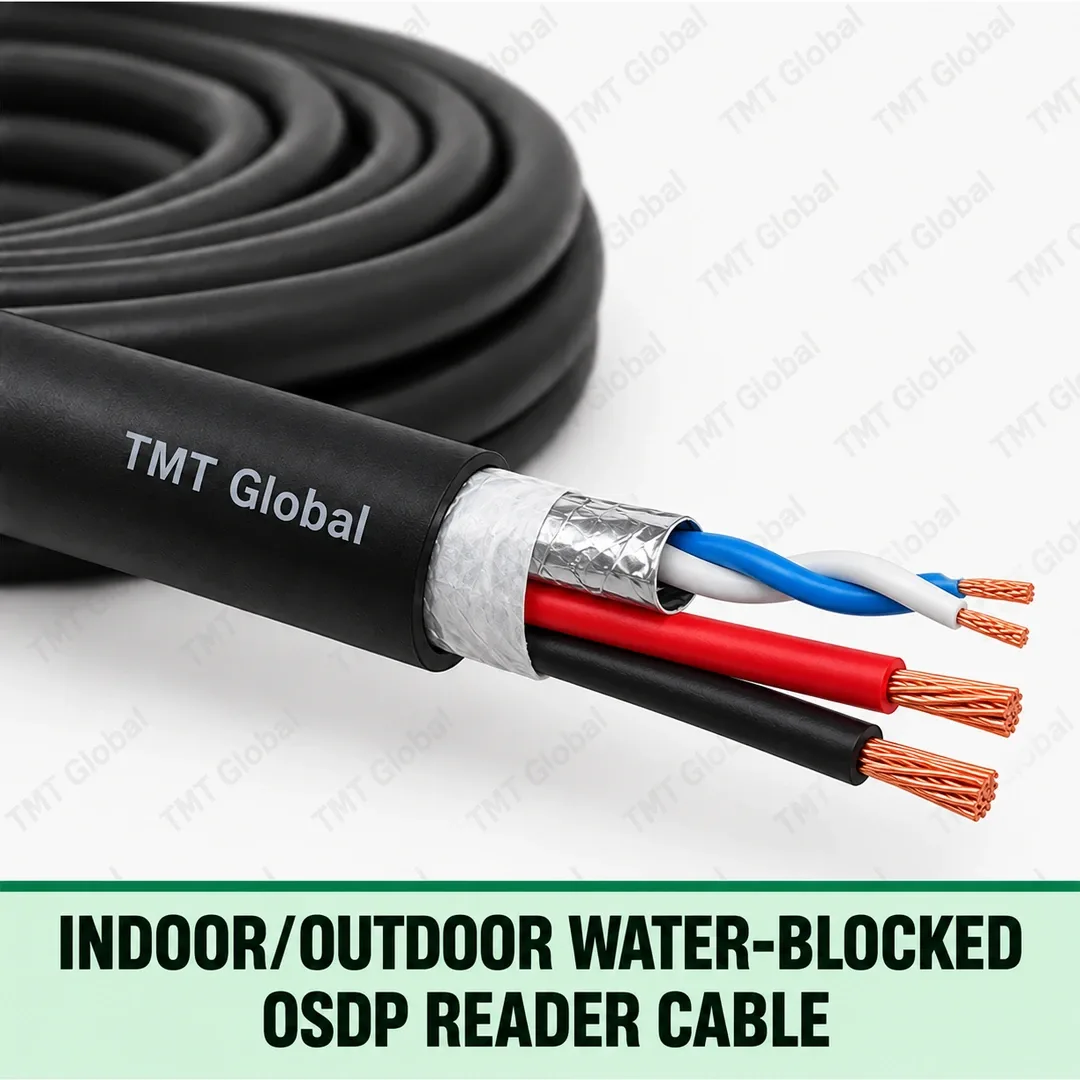

TMT Global Indoor/Outdoor Water-Blocked OSDP Reader Cable, round black PE outdoor common jacket with a water-blocking tape layer, one foil-shielded 120-ohm twisted 22 AWG data pair plus exactly two 18 AWG power conductors, four copper tips total.

Indoor/Outdoor Water-Blocked OSDP Reader Cable

KEY FEATURES

  • Access-control-specific construction
  • 1PR22 + 2C18
  • 120 ohm data pair shielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
SKU: OSDP-WET-AOW Category:
Description

TMT Indoor/Outdoor Water-Blocked OSDP Reader Cable Series

TMT Global Indoor/Outdoor Water-Blocked OSDP Reader Cable is a controlled Security & ELV cable family for professional door access-control installations. Outdoor/wet-location OSDP reader cable with a shielded RS-485 pair, 18 AWG power conductors and moisture/UV protection. Water-blocking, UV and wet-location claims remain evidence-gated to the released TMT construction. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 1PR22 + 2C18
  • 120 ohm data pair shielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Outdoor readers
  • Gate access points
  • Wet or exposed pathways

Technical Specifications

PARAMETER TECHNICAL SPECIFICATION
Product family Indoor/Outdoor Water-Blocked OSDP Reader Cable
Series OSDP-WET-AOW
Primary function Outdoor OSDP reader
Conductor schedule 1PR22 + 2C18
Conductor construction Stranded copper conductors
Screening Shielded data pair; 120 ohm nominal
Cable form Round / common jacket
Jacket options PE Outdoor
Standard colours Black
Standard package 305 m
Installation / protocol OSDP / 2-wire RS-485 access-control link
Series status PE Outdoor: Outdoor / project

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
18 AWG 0.823 PE Outdoor
22 AWG 0.326 PE Outdoor
Additional information
AWG22 awg
BrandTMT Global
ColourBlack
Jacket TypePE Outdoor
Length305 m
Download

visit: www.tmtglobal.co.uk

tmt global ul
tmt-global-BASEC
tmt global INTERTEK
tmt global IEC
tmt global ISO-9001
sira approved brand tmt global
tmt global ROHSS
tmt-global-ETISALAT
du approved brand tmt global
tmt global CE
tmt global FCC
ICC
Ordering Notes
Dear Customer For Updated Prices and Specifications Contact Sales Team. Tel: 0138053166 Mob: 0552792350 Email: info@sahilcommunication.sa Web: www.sahilcommunication.sa Short Address: EKDA6556 Building No: 6556 Street: prince bader ibn abdul aziz Secondary No: 2723 Distract: Al Khobar Ash Shamaliyah
Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
Indoor/Outdoor Water-Blocked OSDP Reader CableOSDP-WET-AOW22 awgPE OutdoorBlack305 m QR code for 0422BKSRK-AOW
