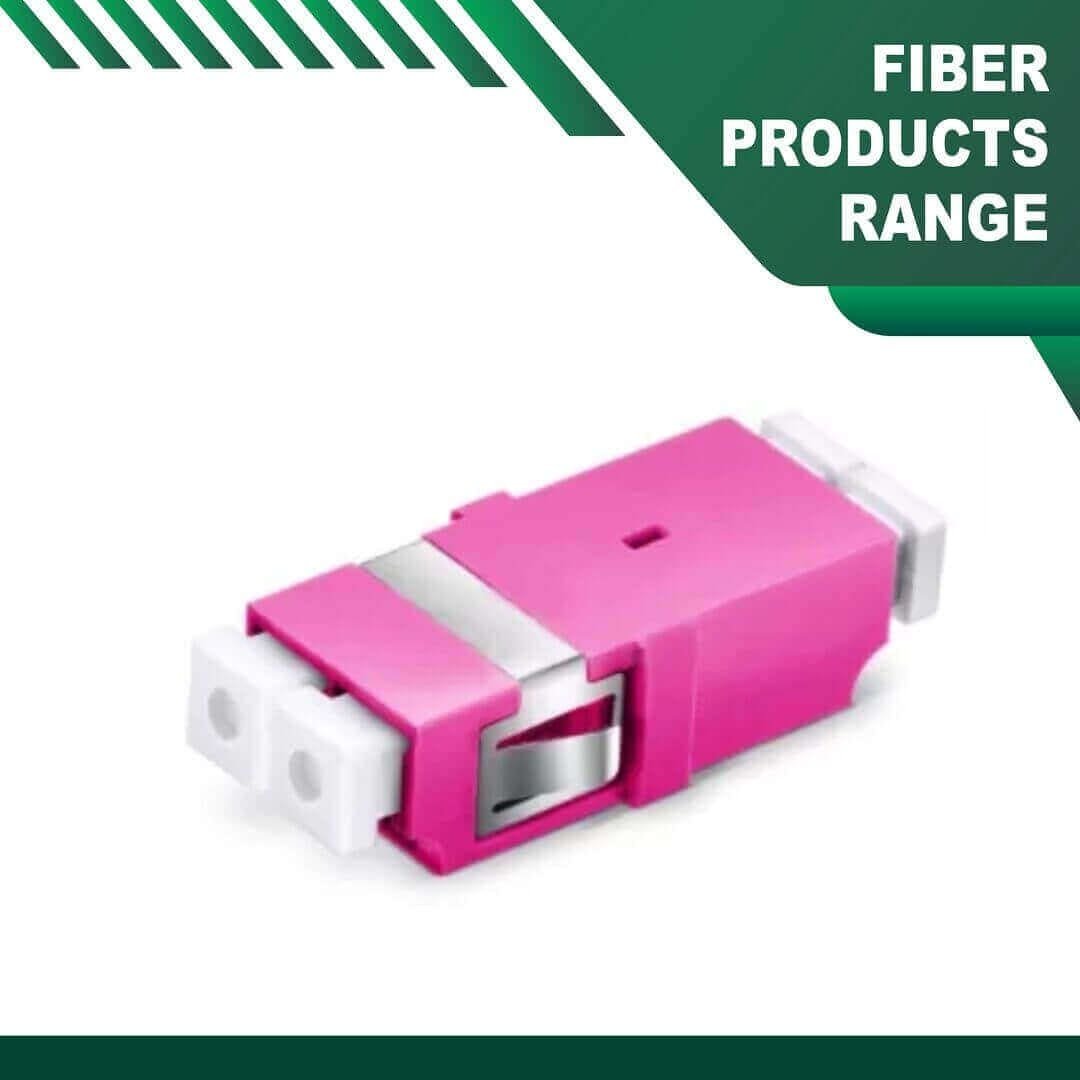

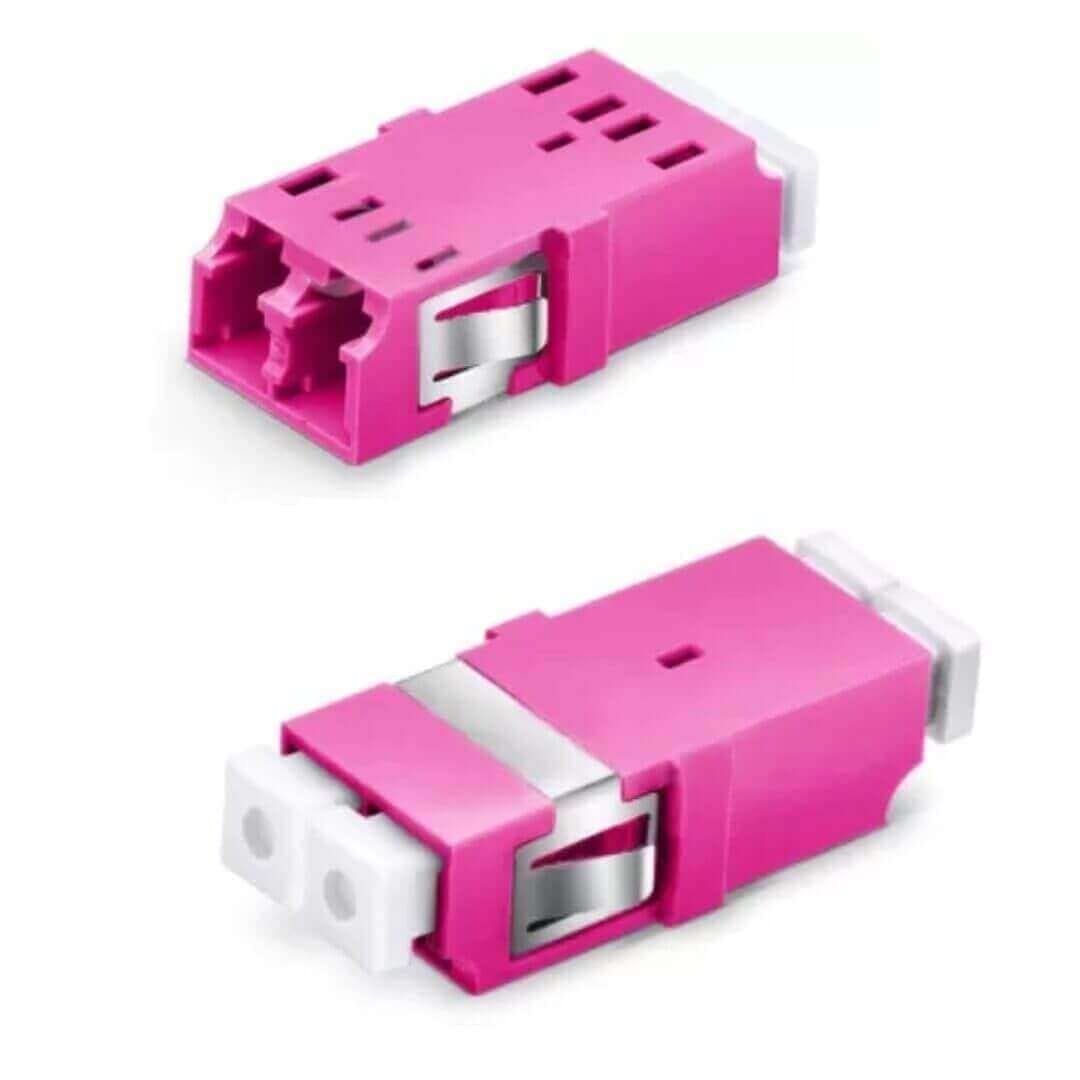

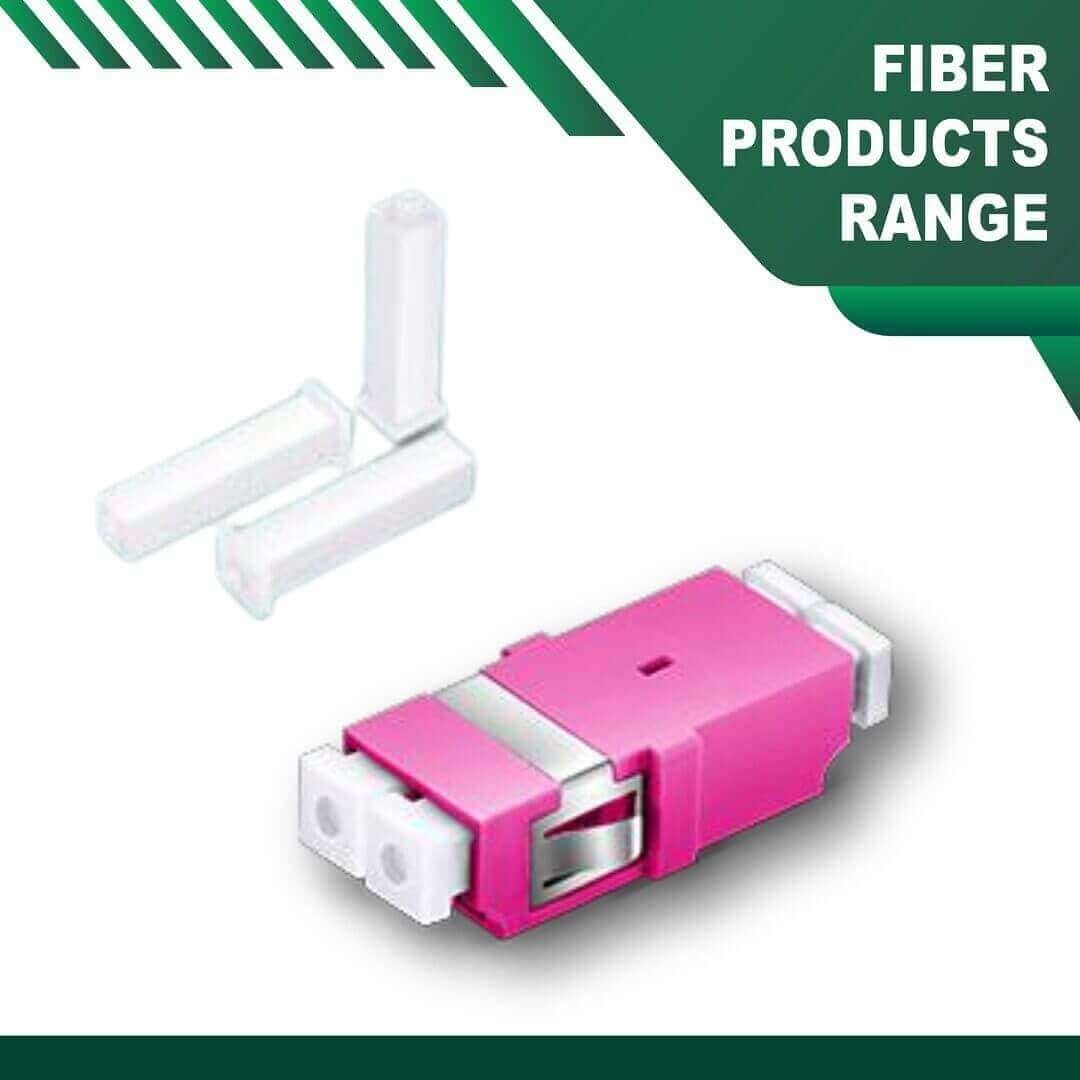

om4 Optical Connector adapter SC UPC Multimode Duplex
ر.س25.00 SR
General Specification
Adapter Type : SC-SC
Polish Type : UPC
Body Type : Duplex
Fiber Mode : Multi Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products IDÂ : TMT-SCDXU4P
TMT GLOBAL saudi arabia Optical Connector adapter om4 SC-UPC Multimode Duplex
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.om4 Optical Connector adapter SC UPC Multimode Duplex
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: UPC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85
Environment and Mechanical
Properties                    Test condition                           Conformance     Test result
Vibration                        10-55Hz, 1.5mm, 60min                      IEC61300-2-1       ≤0.2dB
Mating Durability                1000 Mating, clean every 25 mating           IEC61300-2-2       ≤0.2dB
Impact                          1.5m, 8 drops                               IEC61300-2-6       ≤0.2dB
Strength of Coupling Mechanism  40N, 10Min, L=22-28cm                     IEC61300-2-12      ≤0.2dB
Temperature Cycling             40ºC to +75ºC, 40 cycles                     IEC61300-2-22      ≤0.2dB
Temperature humidity cycling     40ºC， 95%， 96Hr                         IEC61300-2-21      ≤0.2dB
Operating Temperature           -40ºC to +85ºC
Storage Temperature             -40ºC to +85ºC
