Name: best om3 24 core Fiber Optic cable multimode indoor outdoor
Brand: TMT Global
SKU: TMT-243LDK
Price: 15.00 SAR
Availability: InStock
Rating: 5.00 (1 reviews)

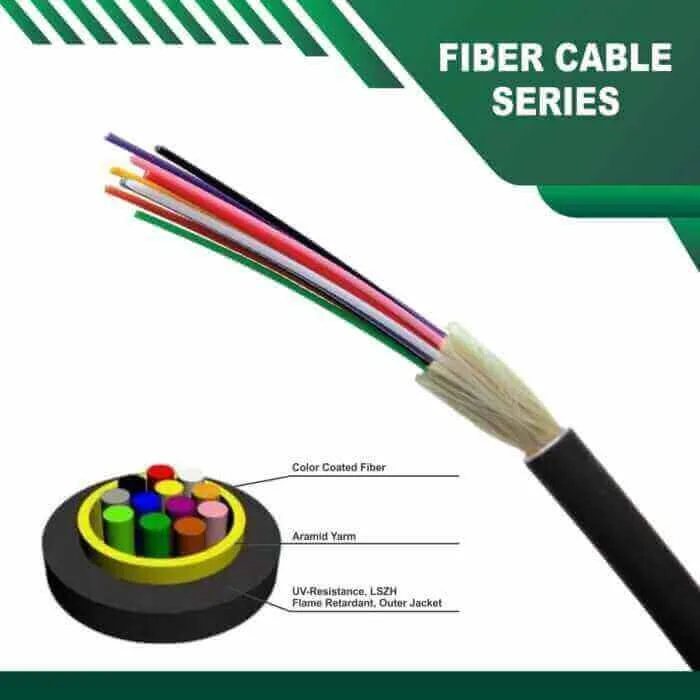

om3 24 core Fiber Optic cable multimode indoor outdoor

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

ر.س15.00 SR

General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 24
Fiber Type : 50/125 OM3
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM) : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID :TMT-243LDK

0 People watching this product now!

TMT GLOBAL saudi arabia 24 core Multimode Fiber Optic Cable om3

TMT GLOBAL om3 24 core Fiber Optic cable multimode indoor outdoor fiber optic cable om3. This fiber optic cable is designed to provide reliable and efficient data transmission for various applications. With its multimode capability, it allows for the fiber products range 2core ftth transmission of multiple signals simultaneously. The 8 core configuration ensures enhanced bandwidth and improved performance. Additionally, the armored products range 2core ftth cable design provides extra protection, making it suitable for harsh environments. TMT GLOBAL Fiber Optic Cable multimode 8 core armored fiber optic cable om3 is a reliable solution for businesses and organizations seeking efficient and secure data transmission

PHYSICAL DESCRIPTION

Products: multi mode Fiber optic cable
Tube Filling Compound: Thixotropic jelly /N
Fiber Type: 50/125 OM3
Tube material: PBT ( Polybutylene Terephthalate)
Armored: N
Packing Detail
Fiber Count: 6,8,12,24,
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 4.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH

Mechanical and Environmental Properties

Physical tests Value Standard

Tensile Strength 2700 N (During Installation) IEC 60794-1-E1

1700 N (During Operation)

Impact Resistance 10J, 3 impacts IEC 60794-1-E4

Crush Resistance 220 N/cm IEC 60794-1-E3

Temperature Cycling -40 to +70 °C IEC 60794-1-F1

Flame Retardancy According to IEC 60332-3 IEC 60332-3

Cable Bending Radius

Bend Radius (during installation) 20x Cable Diameter IEC 60794-1-2-E11A

Bend Radius (during Service) 1 0x Cable Diameter IEC 60794-1-E11

Repeating Bending 20x Cable Diameter IEC 60794-1-E6

Temperature Range)

Operation Temperature -40 to +70 C IEC 60794-1-2-F1

Storage and Transportation Temperature -40 to +70 C

Installation Temperature -30 to +60 C

Optical Characteristics

Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
